Brand Name : | NBC |
Model Number : | NB90-12S-S-C |
Certification : | TUV/CQC/UL |
Price : | negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 500k per month |
Delivery Time : | 4weeks |

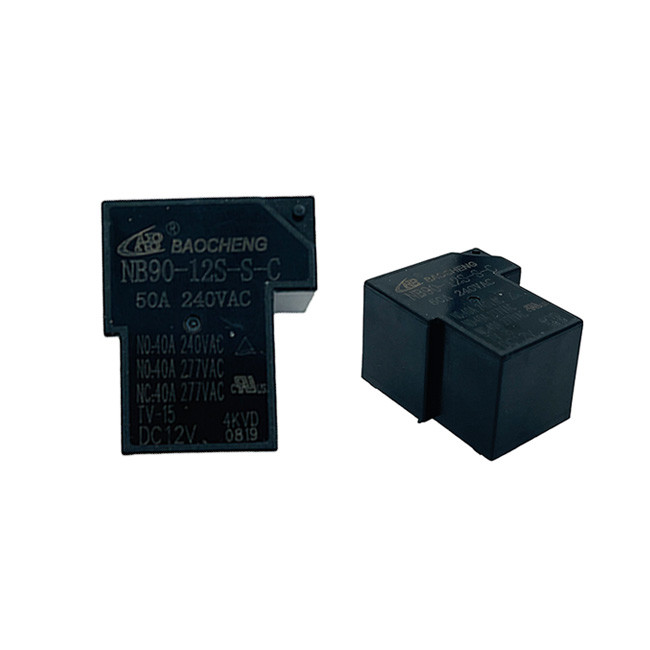

Dustproof Charging Pile Relay New Energy Products Conversion Circuit
Charging Pile Relay Features:
1. 40A contact switching capability;
2. Compact structure;
3. The dielectric withstand voltage between the contact and the
coil is 2.5KV, up to 4KV;
4. It has a group of normally open, normally closed, and changeover
contacts;
5. Plastic seal type and open type are available;
6. UL insulation class: Class F insulation class.
Charging Pile Relay Parameters:
Performance Parameters: | |
Insulation resistance: | 1000MΩ |
Dielectric withstand voltage (between coil and contact): | 2500VAC |
Operating time (Max.): | 15ms |
Release time (Max.): | 10ms |
Ambient temperature: | -40℃ ~ 85℃/105℃ |
Lead-out mode: | PCB in-line (THT) |
Charging Pile Relay Introduce:
The relay is an electrical control device, which can give a specified input quantity and keep it for a long enough time so that the controlled quantity will undergo a predetermined step change in the electrical output circuit. When the input volume drops to a certain level and maintains for a long enough time, it returns to the initial state.
![]() |
