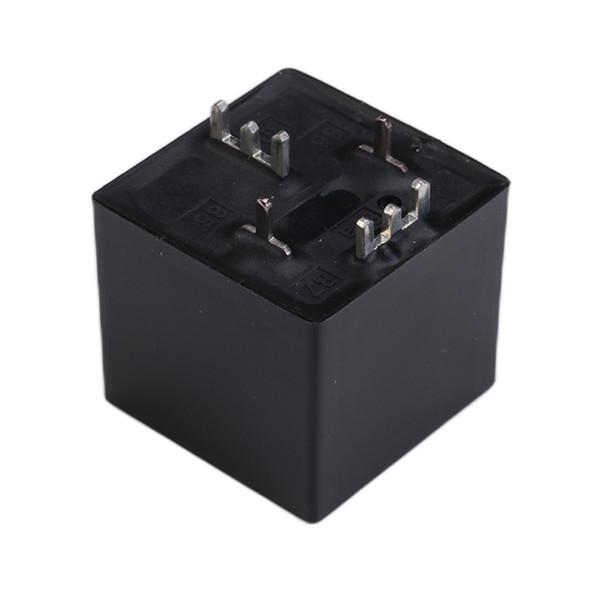

    150W 625VA 12V 50A Relay Overheat Protection Function Uninterrupted Line

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB902-12S-S-A
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    150W 625VA 12V 50A Relay Overheat Protection Function Uninterrupted Line

    150W 625VA 12V 50A Relay Overheat Protection Function Uninterrupted Line


    Speed Sensitive 12V 50A Relay NB902-12S-S-A Adjustment Switch Sensitivity


    12V 50A Relay Introduce:

    A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.


    12V 50A Relay Features:

    1. High load switching capability: 40A;
    2. 2500VAC&4000VAC is available for dielectric strength between contact and coil;
    3. Coil insulation grade Class F;
    4. Contacts forms NO, NC&SPDT;
    5. Dust-proof&Sealed type;
    6. Complies with RoHS-Directive;
    7. Dimension: 32*27.2*20mm.


    12V 50A Relay Technical Rating:

    Contact Rating

    Contact Form

    1A,1B,1C

    Contact Material

    AgCdO AgSnO2

    Contact Load Capacity

    40A 240VAC/30VDC 40A 277VAC 1.5HP 1HP 240VAC TV-5 TV-15

    Switching Power Max.

    1200W 11000VA

    Switching Voltage Max.

    30VDC/277VAC

    Switching Current Max.

    40A

    Contact Resistance Max.

    50mΩ(1A ,24VDC)

    Life expectancy

    Electrical

    40A: 2x10^4 30A: 2x10^4

    Mechanical

    10^7
