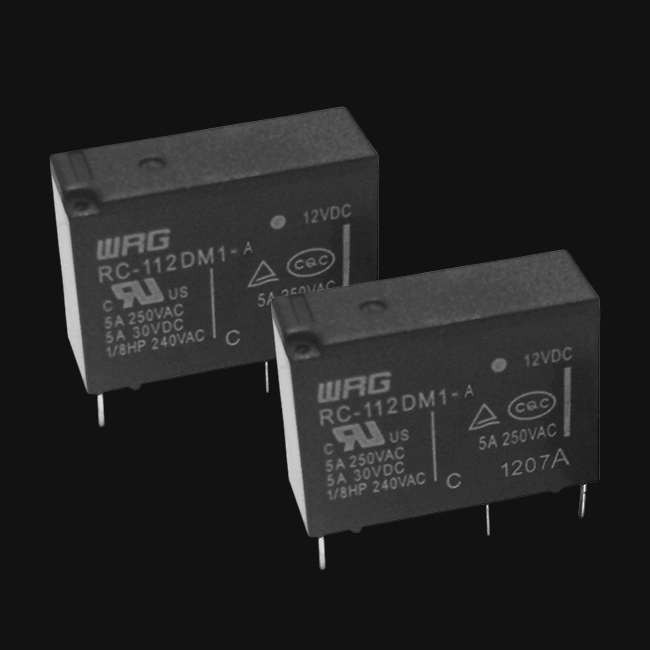

    Shock And Vibration Resistant WRG Relay With High Insulation Resistance

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RC-112DM
    Certification : TUV/CQC/UL/VDE
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Shock And Vibration Resistant WRG Relay With High Insulation Resistance

    Shock And Vibration Resistant WRG Relay With High Insulation Resistance


    WRG Relay Shock And Vibration-Resistant Relay With High Insulation Resistance


    WRG Relay Description:

    Our shock and vibration-resistant relay is engineered to endure harsh operating conditions. It boasts high insulation resistance, which safeguards the device against electrical breakdowns. It's particularly well-suited to environments where vibration and physical shocks are common, such as in automotive applications or heavy machinery. Despite these harsh conditions, this relay ensures stable performance, thereby ensuring the reliability of your electrical system.


    WRG Relay Features:

    1. rated current 3A,4pin

    2. coil power 200mW

    3. lightweight, high sensitivity
    4. ultra-slim,7mm width
    5. Meet with IEC60079-15 anti-explosion standard


    WRG Relay Specification:

    General data
    Rated withstand impulse voltagecoil contact4kV AC/1min
    between contact750V AC/1min
    Surge voltage10kV AC(1.2/50μs)
    Insulation resistance1000MΩ(500VDC)
    VibrationFault 10-55Hz(amplitude 1.5mm)
    Endurance 10-55Hz(amplitude 1.5mm)
    ShockFault 98m/S2 Endurance 980m/S2
    Dimension LxWxH(mm)20.4x7.0x15.1
    Enclosure typeFlux-resistance, sealed
    CertificationscULus:E345228/TUV:R50220640/CQC:CQC12002067898/VDE:40034781
