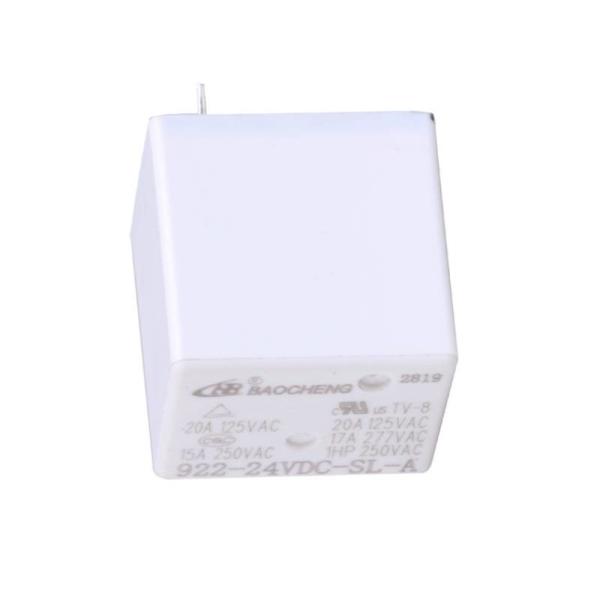

24V 20A Power Relay Sealed White 1.5KV 922-24VDC-SL-A For Electric Car Seat

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap 24V 20A Power Relay Sealed White 1.5KV 922-24VDC-SL-A For Electric Car Seat from wholesalers

    Buy cheap 24V 20A Power Relay Sealed White 1.5KV 922-24VDC-SL-A For Electric Car Seat from wholesalers
    • Buy cheap 24V 20A Power Relay Sealed White 1.5KV 922-24VDC-SL-A For Electric Car Seat from wholesalers

    24V 20A Power Relay Sealed White 1.5KV 922-24VDC-SL-A For Electric Car Seat

    Ask Lasest Price
    Brand Name : WRG
    Model Number : 922-24VDC-SL-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    24V 20A Power Relay Sealed White 1.5KV 922-24VDC-SL-A For Electric Car Seat

    24V 20A Power Relay Sealed White 1.5KV 922-24VDC-SL-A For Electric Car Seat


    20A Power Relay Description:
    NBC 922 series automotive relay,5-48V input voltage, maximum current reach 20A, small size, low coil power consumption,1.5KV dielectric withstand voltage between coil and contact,environmental-friendly and PCB board mounting directly, very fit automotive industry, sound

    equipment, automatic system, etc. Products are approved by TUV/CQC/UL safety system testing, reliable and safe.

    20A Power Relay Features:
    1. SPST, normal open,4pins
    2. rated current 20A

    3. class F insulation

    4. environmental-friendly

    5. dielectric withstands 1.5KV


    20A Power Relay Introduce:

    Relay is an automatic switching element with an isolation function. It is widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment. It is one of the most important control elements.


    20A Power Relay Specification:

    Contact Ratings
    Contact Form:1A, 1B, 1C
    Contact Material:AgCdO, AgSnO2
    Contact Load Capacity:20A 277VAC/250VAC/125VAC; 17A 277VAC; 16A 250VAC
    TV-8 TV-5 120VAC,240VAC
    Max. Switching Current:20A
    Max. Switching Power:5540VA/480W
    Mechanical Endurance:1*10^7OPS
    Electrical Endurance:5*10^4OPS
