    PCB Mount Terminal 250 24V 20A Power Relay RF-SS-124DMF For Control Board

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RF-SS-112DM
    Certification : UL/TUV/CQC/VDE
    Price : negotiable
    Payment Terms : Western Union, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    PCB Mount Terminal 250 24V 20A Power Relay RF-SS-124DMF For Control Board

    PCB Mount Terminal 250 24V 20A Power Relay RF-SS-124DMF For Control Board


    20A Power Relay Description:
    RF series is a power relay special designed for home appliances.Rated current has 20A,25A,32A for options.And its assembly way
    can be PCB mount and PCB with quick terminal 250, two kinds.900mW for coil power,60335-1,60079-15 safety standard can be carried
    out.

    20A Power Relay Features:
    1. fast plug terminal 250 and PCB mounting
    2. class A for insulation
    3. flux-resistance
    4. coil power 900mW
    5. 4.5kv dielectric withstand voltage between coil and contact

    20A Power Relay Applications:

    1. automotive industry: car glass controller for up-down function
    2. household appliances: lampblack machine, roast oven...


    20A Power Relay Specification:

    General data:
    Rated withstand impulse voltagecoil contact4.5kV AC/1min
    between contact1kV AC/1min
    Surge voltage10kV AC(1.2/50μs)
    Insulation resistance1000MΩ(500VDC)
    VibrationFault 10-55Hz(amplitude 1.5mm)
    ShockFault 98m/S2
    Operating temperature-40 ~ 105℃(no condensation)
    Operating humidity20 ~ 85%

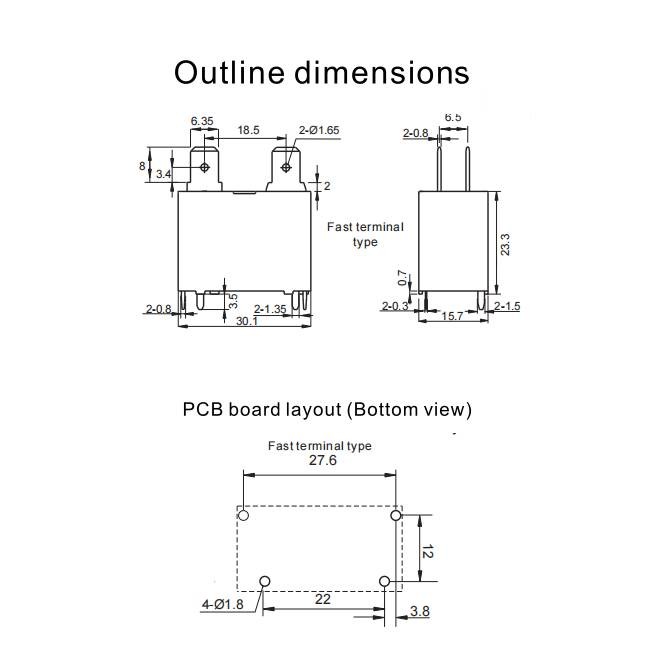

    Dimension LxWxH(mm)30.1x15.7x23.3
    Enclosure typeFlux-proof
    MountingPCB and faster terminal
    Weight(g)22
    CertificationscULus:E345228/TUV:R50194013/CQC:CQC10002052738
