    Normally Open DC 24V 30A Power Relay SPST Sealed For Car Power Charging Point

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB90E-24S-S-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    Normally Open DC 24V 30A Power Relay SPST Sealed For Car Power Charging Point

    Normally Open DC 24V 30A Power Relay SPST Sealed For Car Power Charging Point


    30A Power Relay Description:

    New energy products, like electric vehicles, must be a trend in the next few days. So more and more fast-charging stations are made and satisfy the need for electric cars power-charging.NB90 series relay is specially applied to the charging point. It is a high switching capacity for contacts, is a dust-proof or sealed type option, and is environmentally friendly.


    30A Power Relay Features:

    1. 2500VAC for dielectric withstand voltage between contact and coil

    2. Class F for coil insulation grade

    3. Sealed-type

    4. SPST


    30A Power Relay Specification:

    Insulation Resistance100MQ(500VDC)Min.
    Dielectric StrengthBetween Open Contacts500VAC 50Hz
    Between Contact and Coil4000VAC 50Hz
    Shock ResistanceOperation extremes 10G, Damage limits 100G
    Vibration ResistanceOperation extremes 10-500Hz,4.4G, Damage limits 10-500Hz, 4.4G
    Ambient Temperature-40°C ~ 85°C
    Relative Humidity85% (20°C )
    Weight6g


    30A Power Relay Introduce:

    A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.

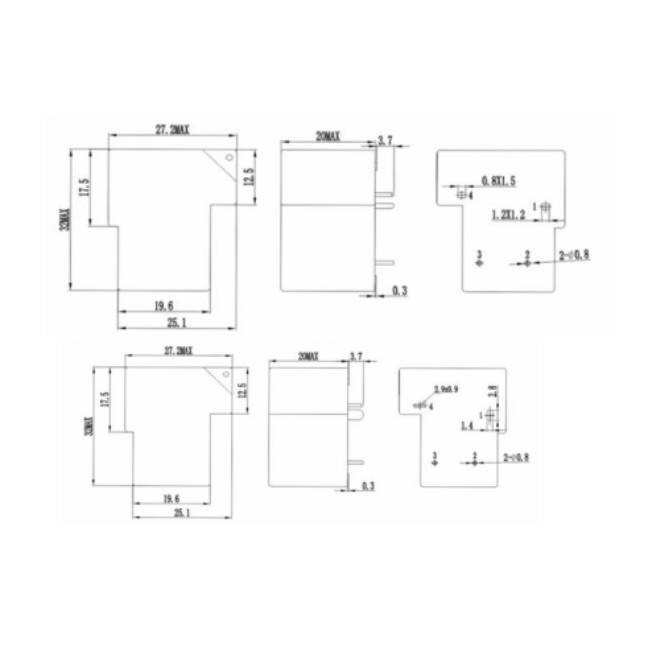

    PCB Layout (Bottom View)

    Normally Open DC 24V 30A Power Relay SPST Sealed For Car Power Charging Point

    PCB Board Layout(Bottom View)

    Normally Open DC 24V 30A Power Relay SPST Sealed For Car Power Charging Point
