    10 Amp 12V SPST Relay 0.54W PCB Mount Dielectric Withstand 5KV For Electric Cooker

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RMI-SS-112LM
    Certification : CQC/TUV/UL
    Price : negotiable
    Payment Terms : T/T, D/A, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4 weeks
    • Product Details
    • Company Profile

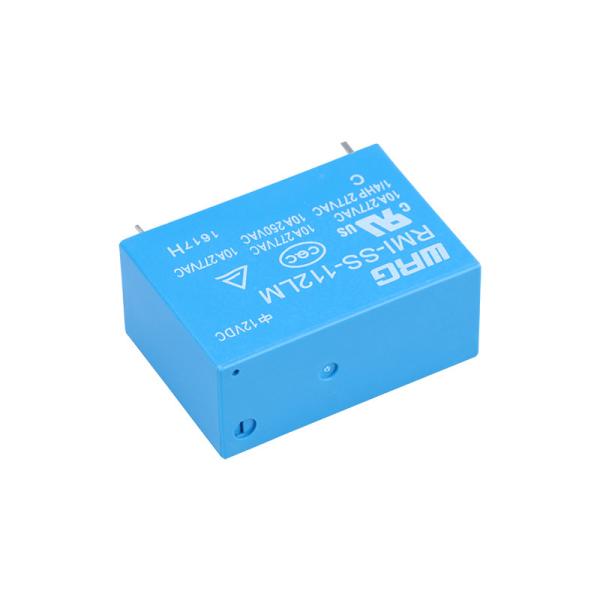

    10 Amp 12V SPST Relay 0.54W PCB Mount Dielectric Withstand 5KV For Electric Cooker

    10 Amp 12V SPST Relay 0.54W PCB Mount Dielectric Withstand 5KV For Electric Cooker


    12V SPST Relay Description:

    Power Relay RMI series are low current 16A or lower, coil input voltage 5/9/12/18/48v available, and meet with anti-explosion safety standard, dielectric withstand 5KM between coil and contact, enough insulation distance for control switch, particularly are applied

    in small-appliance.


    12V SPST Relay Features:

    1. flux-resistance

    2. 5kv dielectric insulation distance between coil and contact

    3. 60079-15 anti-explosion safety standard is approved


    12V SPST Relay Specification:

    General data

    Rated withstand impulse voltage

    coil contact

    5kV AC/1min

    between contact

    1kV AC/1min

    Surge voltage

    10kV AC(1.2/50μs)

    Insulation resistance

    1000MΩ(500VDC)

    Vibration

    Fault 10-55Hz(amplitude 1.5mm)

    Endurance 10-55Hz(amplitude 1.5mm)

    Operating humidity

    20 ~ 85%

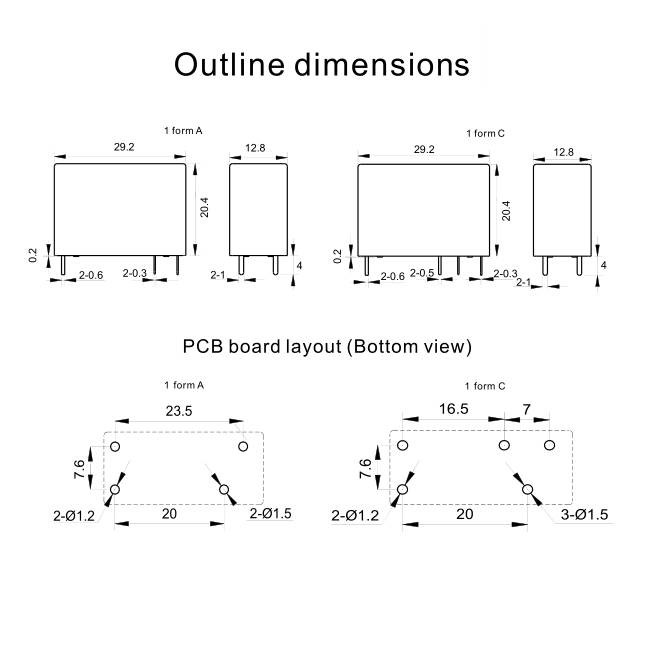

    Dimension LxWxH(mm)

    29.2x12.8x20.6

    Enclosure type

    Flux-resistance, sealed

    Mounting

    PCB

    Weight(g)

    14

    Certifications

    cULus:E345228/TUV:R50242245/CQC:CQC11002066332


    For further datasheets, please click the link below or contact us.

    RMI & RMIH Series.pdf


    12V SPST Relay FAQ:

    Q1: What is the delivery time like?

    A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.

    Q2: How about after-sales service?
    A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you
