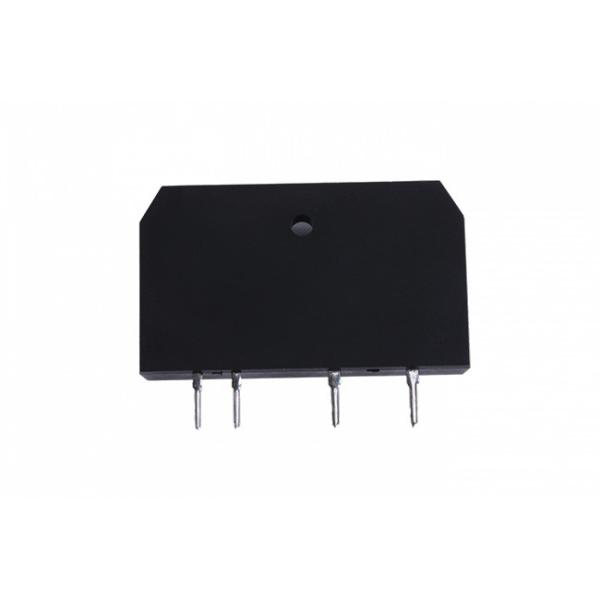

    Overload Protection TRIAC Relays YS-3F New Energy Products Standard

    Ask Lasest Price
    Brand Name : YSUN
    Model Number : YS-3F
    Certification : cULus:E509779/TUV:B1067040001/CQC:CQC21107292207
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 500k per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Overload Protection TRIAC Relays YS-3F New Energy Products Standard

    Overload Protection TRIAC Relays YS-3F New Energy Products Standard


    TRIAC Relays Description:

    The relay is an electrical control device, which can give a specified input quantity and keep it for a long enough time so that the controlled quantity will undergo a predetermined step change in the electrical output circuit. When the input volume drops to a certain level and maintains for a long enough time, it returns to the initial state.


    TRIAC Relays Features:

    1. Speed: It means that the protection device should be able to cut off the short-circuit fault as soon as possible. Its purpose is to improve system stability, reduce the damage of faulty equipment and lines, reduce the scope of faults, improve the effect of automatic reclosing and backup power supply or automatic input of backup equipment, etc.;
    2. Sensitivity: When a metallic short circuit occurs within the protected range of equipment or lines, the protection device should have the necessary sensitivity coefficient. Guaranteed to be removed if there is a fault;
    3. Selectivity: It means that the protection of the faulty equipment or the line itself should remove the fault first, and only when the protection of the faulty equipment or the line itself or the circuit breaker refuses to operate, the fault can be removed by the protection of the adjacent equipment, the line or the protection of the circuit breaker failure.


    TRIAC Relays Technical Parameters:

    Electric parameters(Environment temperature:25℃)

    Item

    Symbol

    Test condition

    Min

    Typical

    Max

    Unit

    Input

    LED Forward voltage

    VF

    IF=10mA


    1.16

    1.3

    V

    LED Reverse current

    IR

    VR=6V IF=0mA


    0.1

    10

    μA

    Output

    Peak off-state current

    IDRM

    VDRM=600V



    100

    μA

    Peak on-state voltage drop

    VTM




    2.5

    V

    Holding current

    IH

    IFTM=Max



    25

    mA

    Rise rate off-state critical voltage

    dv/dt

    VDRM=600Vx1/√2


    200


    V/μs

    Transmission

    LED trigger current

    IFT

    VD=6V RL=100Ω


    10


    mA

    Turn-on time

    Ton


    1


    10

    ms

    Turn-off time

    Toff




    10

    ms

    Insulation resistance

    Riso

    500VDC(input-output)


    50


    Weight





    0.58


    g


    TRIAC Relays Applications:

    1. Traffic light system

    2. Security systems

    3. Computer peripheral interface

    4. Remote system
