    220 Volt 30 Amp AC Relay NB90E-AC220S-S-A For Photovoltaic Energy Storage Charging

    NBC

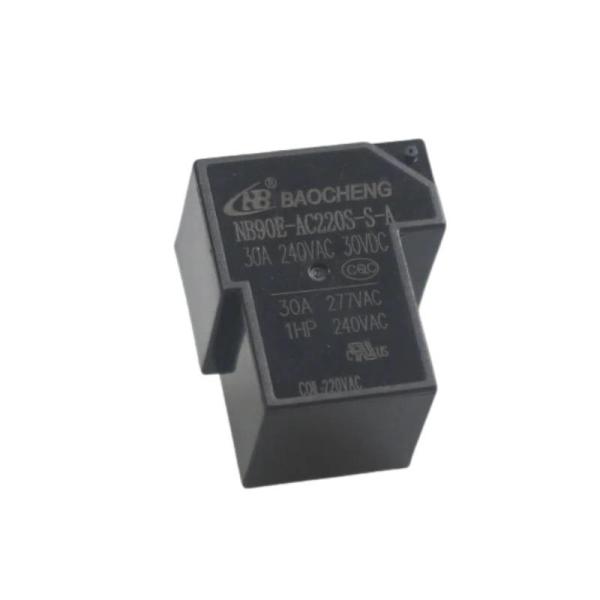

    220 Volt 30 Amp AC Relay NB90E-AC220S-S-A for Photovoltaic Energy Storage Charging


    Description:
    AC PCB mount relay NB90xx,support coil voltage 24V,110V,220V,240V,277V,maximum load current is 40A.If with suffix E,then it is 30A for switching current.Strictly comply to UL standard,in accordance with RoHs-Directive as well,
    suitable for overload and open phase protection of AC 50Hz three-phase motor,printing, packaging, plastics, food and metallurgy production line etc.


    Feature:

    1. Class F for coil insulation grade

    2. SPDT & SPST

    3. Rated current max 40A

    4. PIN form:A4(NO. with 4pin),A5(NO. with 5pin),B4(NO. with 4pin),B5(NO. with 5pin),C5(NO.&NC. with 5pin),C6(NO.&NC. with 6pin)


    Porduct Dispaly:

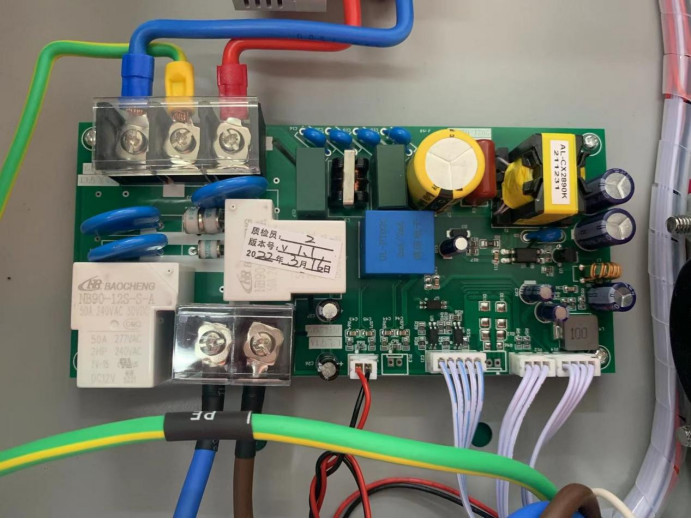

    220 Volt 30 Amp AC Relay NB90E-AC220S-S-A For Photovoltaic Energy Storage Charging220 Volt 30 Amp AC Relay NB90E-AC220S-S-A For Photovoltaic Energy Storage Charging220 Volt 30 Amp AC Relay NB90E-AC220S-S-A For Photovoltaic Energy Storage Charging


    AC Power Relay Note:

    1. Using under a clean environment(excluding H2S, SO2, NO2, dust contaminants), dust-proof type is recommended using under a polluted environment(containing H2S, SO2, NO2, dust contaminants), sealed type is recommended, and please contact us during practical application;

    2. When assembly on PCB, it needs to be completely washed, please inform us before ordering, so as to provide the proper types;

    3. If the dielectric strength between the coil & contacts has to be over 2500VAC, please inform us before ordering, so as to provide the proper types.

    4. Avoid using it under strong magnetic or shock extremes conditions, or the technical rating will be changed.


    Specification:

    Contact Rating
    Contact Form1A,1B,1C
    Contact MaterialAgCdO AgSnO2
    Contact Load CapacityNB90NB90E
    40A 240VAC/30VDC 40A 277VAC 1.5HP 1HP 240VAC TV-5 TV-1530A/20A 240VAC/30VDC 30A 277VAC 1HP 1/2HP 240VAC TV-5
    Switching Power Max.1200W 11000VA
    Switching Voltage Max.30VDC/277VAC
    Switching Current Max.40A
    Contact Resistance Max.50mΩ(1A ,24VDC)
    Life expectancyElectrical40A: 2x104 30A: 2x104
    Machanical10 7
    Safety Certification
    ApprovalCQCUL
    Load40A 240VAC 30VDC40A 277VAC 1.5HP 240VAC, TV-5

    Coil Rating
    Coil VoltageCoil Resistance Ω±10%Pick up (VDC) Max. (75% of Rated Voltage)Drop out (VDC) Min.(10% of Rated Voltage)
    RatedMax.
    2431.2120187
    11014323608333
    12015630409036
    2202861349016566
    2403121349018072
    2773601500020883

    Technical Rating
    Insulation ResistanceMin.1000MΩ(500VDC)IEC 60255-5
    Dielectric StrengthBetween Contacts1500VAC, 50/60Hz 1min; Max 4000 VACIEC 60255-5
    Between Coil&Contact2500VAC 50/60Hz Min; (4000VAC Min without Pin #6,when required)IEC 60255-5
    Operate Time≤15ms
    Release Time≤10ms
    Shock ResistanceOperation extremes 10G Damage limits 100GIEC 68-2-27 test Ea
    Vibration Resistance10Hz~55Hz double amplitude 1.5mmIEC 68-2-6 test Fc
    Ambient Temperature﹣55℃~85℃;﹣55℃~105℃
    Relative Humidity85% RH , 40℃IEC 68-2-3 test Ca
    WeightApprox.26.0g
    PackageSealed;Dust-proof type

    3 Dimension and circuit of ac current relay

    32

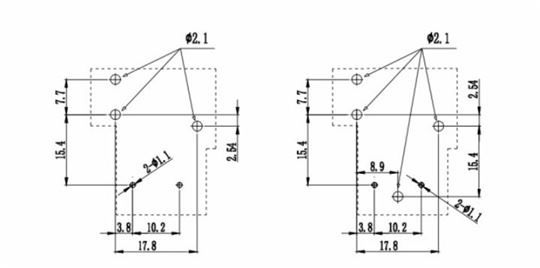

    Outline Dimensions


    33

    Bottom View Layout


    34

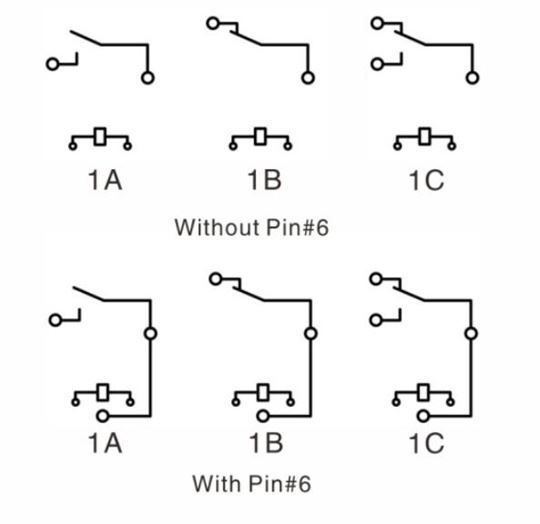

    Wiring Diagram(Bottom View)


    35

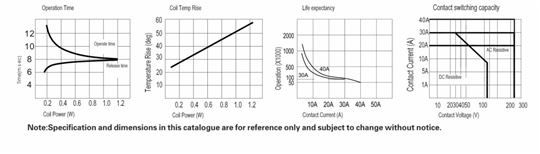

    Engineering Data
