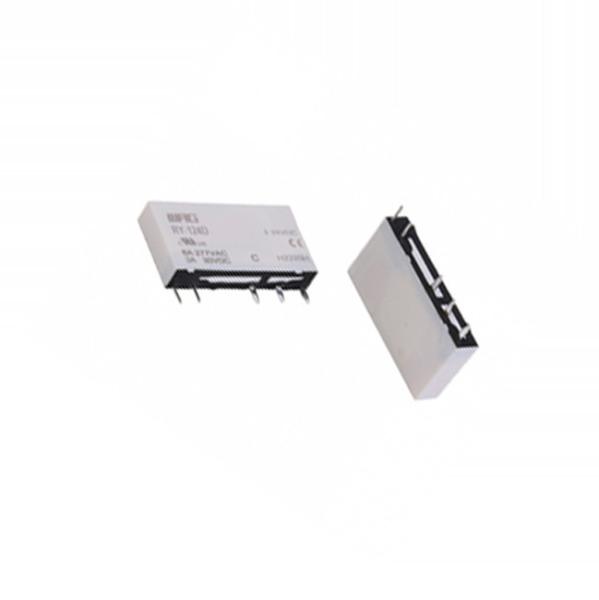

    170mW SPDT Power Relay 24V 6A Slim Withstand 4KV For Hair Dryer

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RY-124D
    Certification : UL:E345228
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    170mW SPDT Power Relay 24V 6A Slim Withstand 4KV For Hair Dryer

    170mW SPDT Power Relay 24V 6A Slim Withstand 4KV For Hair Dryer


    SPDT Power Relay Description:
    RSC series power relay that pretty suitable for small current, low consumption, and environmental-friendly electrical products or small home
    appliances.3V,5V,6V,9V,12V,24V input to choose from,0.2W or 0.36w for coil power, rated current 3A,3g for weight, size with 15.5*10.6*12mm.

    SPDT Power Relay Features:
    1. ultra-thin,6mm width only, saving space.
    2. rated current 6A.
    3. 1 Form C, SPDT, 5 pins.

    4. high dielectric withstands voltage 4KV.

    5. IP67 protection grade.

    6. base matches with it and carries LED and protection circuits.

    Principle of Power Relay:

    A power relay is a device that can produce a jump in one or more electrical output circuits when the input quantity (or excitation quantity) meets certain specified conditions. It can be used in the direct grounding system of the neutral point as a directional element for zero-sequence current protection. The working principle of the power relay is that when a certain voltage or current is applied to both ends of the power relay coil, the magnetic flux generated by the coil passes through the magnetic circuit composed of the iron core, the yoke, the armature and the working air gap of the magnetic circuit. Under the action of the magnetic field, the armature Attract to the pole surface of the iron core, thereby pushing the normally closed contact of the contact to open, and the normally open contact to close; when the voltage or current at both ends of the coil is less than a certain value when the mechanical reaction force is greater than the electromagnetic suction force, the armature returns to the initial state, normally open contact is disconnected and the normally closed contact is connected.


    SPDT Power Relay Applications:
    household appliances: such as induction cooker, electric toaster, and electric heater.


    SPDT Power Relay Specification:

    Coil data

    Coil input voltage

    12/24/48/60VDC

    Coil power

    900mW

    Response voltage

    >75%(Room temp.)

    Drog out voltage

    <5%(Room temp.)

    Operating time / Release time

    Less than 20ms/Less than 10ms


    For further datasheets, please click the link below or contact us.
    RY-124D (2).pdf
