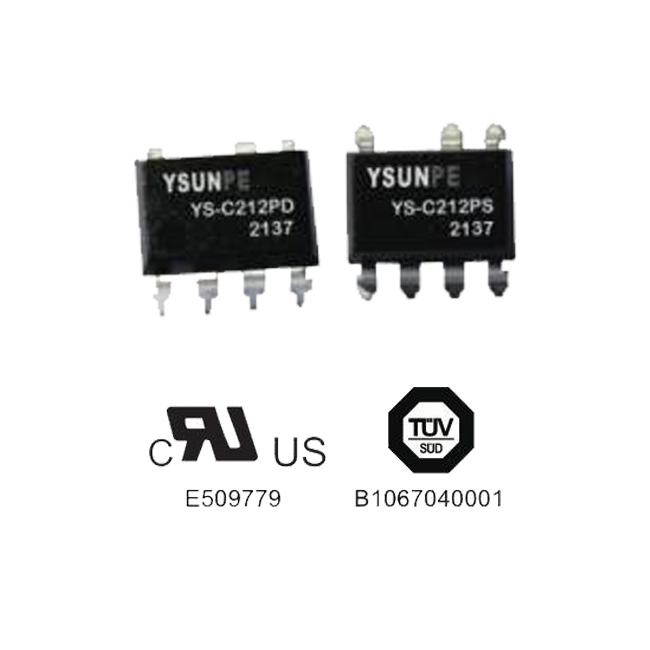

    YS-C212PS 1.2A Solid State Relay SOP8 Non Zero Crossing SSR For Fan

    Ask Lasest Price
    Brand Name : YSUN
    Model Number : YS-C212PS
    Certification : cULus:E509779/TUV:B1067040001
    Price : negotiable
    Payment Terms : T/T, , Western Union, L/C, D/A, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    YS-C212PS 1.2A Solid State Relay SOP8 Non Zero Crossing SSR For Fan

    YS-C212PS 1.2A Solid State Relay SOP8 Non-Zero Crossing SSR For Fan


    Solid State Relay Description:

    YS-C2 series photometric relay, is a compact and small package with DIP8 or SOP8, weight only 0.6g SSR. Low noise, high endurance, dielectric withstand voltage can be 5000VAC,110 or 220VAC for load voltage, non zero cross trigger, ideal for security systems, CNC, communication interface, PLC, etc.


    Solid State Relay Features:

    1. Small size: 9.78*6.4*3.9mm(DIP)

    2. Load current: 1.2A

    3. TRAIC output

    4. SOP8 package

    5. Dielectric withstand voltage:5000VAC


    Solid State Relay Technical Parameters:

    Electric parameters(Environment temperature:25℃)
    ItemSymbolTest conditionMinTypicalMaxUnit
    InputLED Forward voltageVFIF=10mA1.161.3V
    LED Reverse currentIRVR=6V IF=0mA0.110μA
    OutputPeak off-state currentIDRMVDRM=600V100μA
    Peak on-state voltage dropVTM2.5V
    Holding currentIHIFTM=Max25mA
    Rise rate off-state critical voltagedv/dtVDRM=600Vx1/√2200V/μs
    TransmissionLED trigger currentIFTVD=6V RL=100Ω10mA
    Turn-on timeTon110ms
    Turn-off timeToff10ms
    Insulation resistanceRiso500VDC(input-output)50

    For further datasheet, please click the link below or contact us:

    YS-C2 Data Sheet.pdf


    Solid State Relay introduces:

    A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
