Resilient 20A PCB Latching Relay High Mechanical Lifespan Of 5x10x6 Operations

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap Resilient 20A PCB Latching Relay High Mechanical Lifespan Of 5x10x6 Operations from wholesalers

    Buy cheap Resilient 20A PCB Latching Relay High Mechanical Lifespan Of 5x10x6 Operations from wholesalers
    • Buy cheap Resilient 20A PCB Latching Relay High Mechanical Lifespan Of 5x10x6 Operations from wholesalers

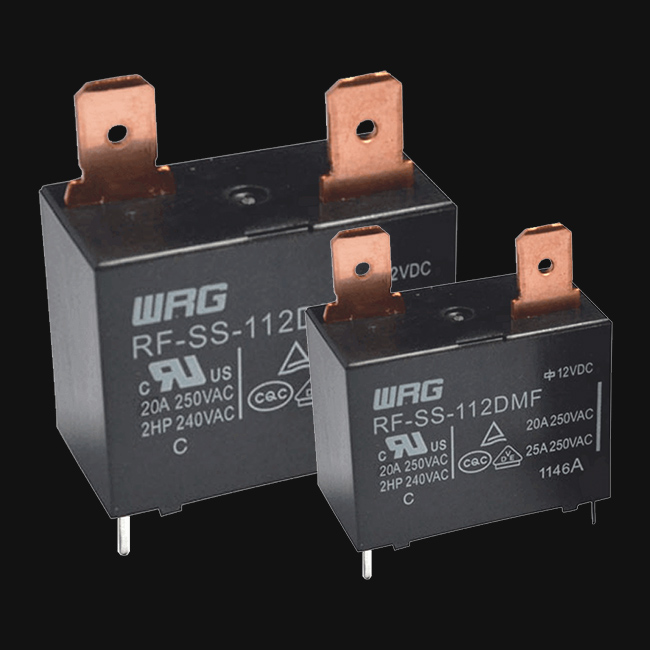

    Resilient 20A PCB Latching Relay High Mechanical Lifespan Of 5x10x6 Operations

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RF-SS-112DMF
    Certification : UL/TUV/CQC/VDE
    Price : negotiable
    Payment Terms : Western Union, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Resilient 20A PCB Latching Relay High Mechanical Lifespan Of 5x10x6 Operations

    Resilient 20A PCB Latching Relay High Mechanical Lifespan Of 5x10x6 Operations


    WRG Relay Resilient PCB Relay With High Mechanical Lifespan Of 5x10x6 Operations


    WRG Relay Description:
    Our Resilient PCB Relay stands as a testament to durability and reliability. It boasts a high mechanical lifespan of a minimum of 2x10x6 to 5x10x6 operations, guaranteeing a long and reliable service life. This relay is designed to endure the rigors of regular usage, making it an ideal choice for applications requiring frequent switching operations. With a rated impulse withstand voltage between coil and contacts of 4.5 kV AC, it ensures safe operation and averts electrical breakdowns, further contributing to its overall longevity.

    WRG Relay Features:
    1. reliable and durable
    2. class A for insulation
    3. IEC60079-15 anti-explosion standard is available as to option
    4. fast plug terminal 250 and PCB mounting
    5. 4.5kv dielectric withstand voltage between coil and contact

    WRG Relay Specification:

    Insulation Resistance1000MΩ
    Dielectric Strength(Between coil&contact)2500VAC
    Operate Time (Max.)15ms
    Release Time (Max.)10ms
    Ambient Temperature-40℃ ~ 85℃/105℃
    Terminal TypeTHT & QT
