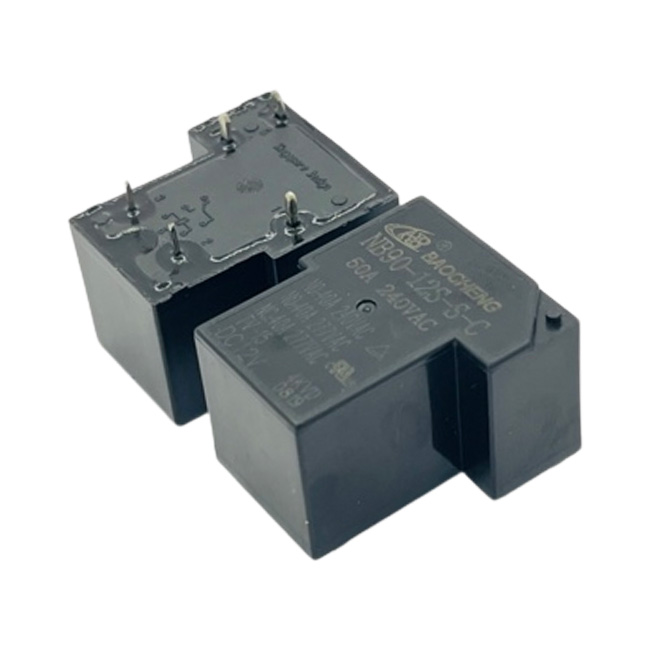

    EV Charger Sealed DC 12V 50A Relay SPDT 2.5KV PCB Mount NB90 - 12S - S - C

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB90-12S-S-C
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    EV Charger Sealed DC 12V 50A Relay SPDT 2.5KV PCB Mount NB90 - 12S - S - C

    EV Charger Sealed DC 12V 50A Relay SPDT 2.5KV PCB Mount NB90-12S-S-C

    12V 50A Relay Description:
    New energy products, like electric vehicles, must be a trend in the next few days. So more and more fast-charging stations are made and satisfy the need for electric cars' power-charging.NB90 series AC relay is specially applied to the charging point. It is a high switching capacity for contacts, is a dust-proof or sealed type option, and is environmentally friendly.

    12V 50A Relay Features:

    1. Using brass pins so that it comply with Europe standard

    2. 4000VAC for dielectric withstand voltage between contact and coil

    3. Sealed-type

    4. SPDT & SPST

    5. Rated current max 50A

    6. 900mW or 1.2W

    7. TUV/CQC/UL certification


    12V 50A Relay Designation:

    NB90 - 12S - S - A W 4KV T-105℃ X

    1. NB90:Model No. (Max. contact load capacity 50A).

    2. A: Contact Form: A: Normally Open B: Normally Close C: SPDT(NO&NC).

    3. W: white None: black.

    4. 4KV: Between contact and coil dielectric withstand voltage 4KV, None: 2500V.

    5. T-105℃: ambient temperature 105℃. None: normal temperature resistant.

    6. X: Customer code.

    12V 50A Relay Note:

    1. Using under a clean environment(excluding H2S, SO2, NO2, and dust contaminants), a dust-proof type is recommended;

    Using under polluted environment(containing H2S, SO2, NO2, dust contaminants), a sealed type is recommended, and please contact us during practical application;

    2. Avoid using it under strong magnetic or shock extremes conditions, or the technical rating will be changed.


    12V 50A Relay Specification:

    Contact data:
    Contact Configuration1 Form A
    Contact materialAg alloy
    Max. switching voltage30VDC,277VAC
    Max. switching power2,770VA
    Contact ratings50A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC
    Contact resistanceMax. 100mΩ(1A/6VDC)
    Mechanical endurance1x107 times
    Electrical endurance AC11x105 times
