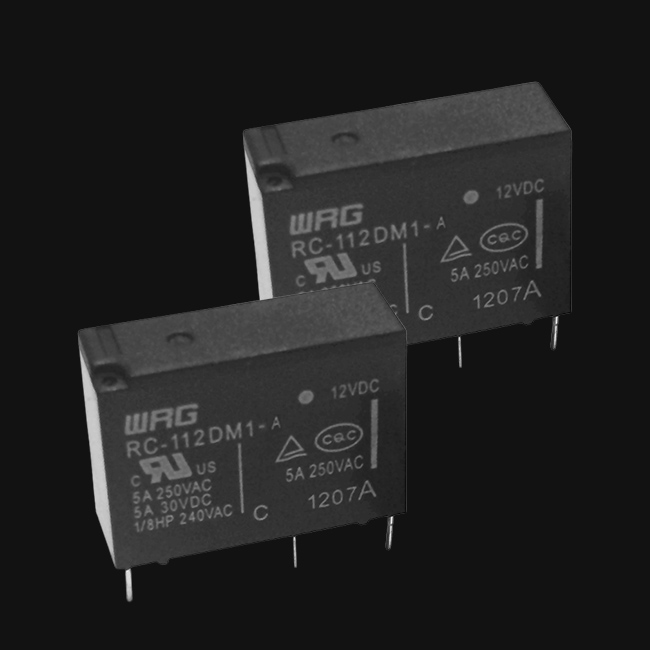

    WRG Miniature PCB Relay 20.4x7.0x15.1mm Size Lightweight Design

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RC-112DM
    Certification : TUV/CQC/UL/VDE
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    WRG Miniature PCB Relay 20.4x7.0x15.1mm Size Lightweight Design

    WRG Miniature PCB Relay 20.4x7.0x15.1mm Size Lightweight Design


    WRG Relay Miniature PCB Relay With Compact 20.4x7.0x15.1mm Size Lightweight Design


    WRG Relay Description:

    The Miniature PCB Relay is designed for applications where space is a premium. With its compact size of 20.4x7.0x15.1mm, it occupies minimal space on your PCB. Despite its small footprint, this relay offers the full functionality of a larger counterpart. It is lightweight, making it an ideal choice for portable devices. This relay is perfect for applications in modern electronics where reducing the device's size without compromising functionality is essential.


    WRG Relay Features:

    1. rated current 3A,4pin

    2. coil power 200mW

    3. lightweight, high sensitivity
    4. ultra-slim,7mm width
    5. Meet with IEC60079-15 anti-explosion standard


    WRG Relay Specification:

    General data

    Rated withstand impulse voltage

    coil contact

    4kV AC/1min

    between contact

    750V AC/1min

    Surge voltage

    10kV AC(1.2/50μs)

    Insulation resistance

    1000MΩ(500VDC)

    Vibration

    Fault 10-55Hz(amplitude 1.5mm)

    Endurance 10-55Hz(amplitude 1.5mm)

    Shock

    Fault 98m/S2 Endurance 980m/S2

    Dimension LxWxH(mm)

    20.4x7.0x15.1

    Enclosure type

    Flux-resistance, sealed

    Certifications

    cULus:E345228/TUV:R50220640/CQC:CQC12002067898/VDE:40034781
