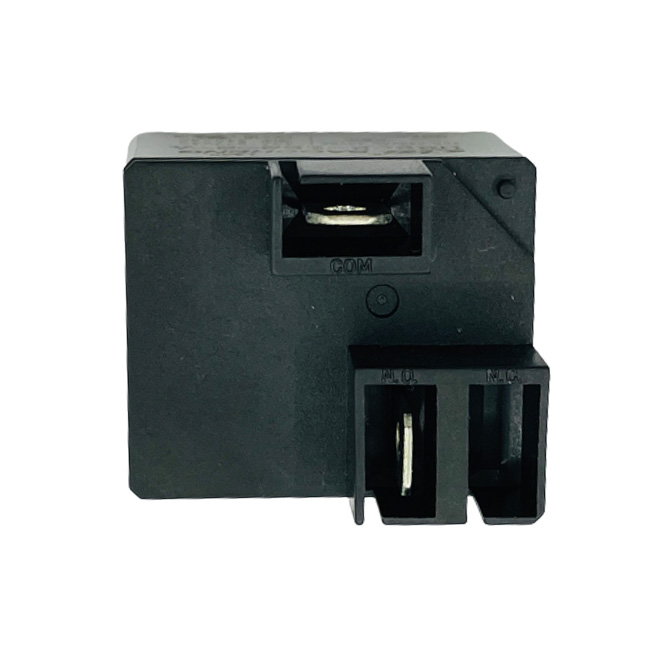

    PCB Mount 5V 40A Power Relay NO. 0.9W 2.5KV 4KV NB902-5S-S-A

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB902-5S-S-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    PCB Mount 5V 40A Power Relay NO. 0.9W 2.5KV 4KV NB902-5S-S-A

    PCB Mount 5V 40A Power Relay NO. 0.9W 2.5KV 4KV NB902-5S-S-A


    40A Power Relay Description:

    NB902 series power relay, large switching capacity, maximum can reach 40A, the contact form has NO., NC, and SPDT to option.2.5KV or 4KV dielectric withstand voltage between coil and contacts, PCB mounting and QT connection both work. Sealed or dust-proof, TUV/CQC/UL is approved, also complies with RoHS-directive, widely use in industry, agriculture, automotive...


    40A Power Relay Features:

    1. 2500VAC is available for dielectric to withstand voltage between contact and coil

    2. Class F for coil insulation grade

    3. environmental-friendly

    4. 1 form C, SPST & SPDT

    5. TUV/CQC/UL certification

    6. complied with RoHS-directive


    40A Power Relay Introduce:

    A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.


    40A Power Relay Specification:

    Contact Configuration1 Form A
    Contact materialAg alloy
    Max. switching voltage30VDC,277VAC
    Max. switching power2,770VA
    Contact ratings5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC
    Contact resistanceMax. 100mΩ(1A/6VDC)
    Mechanical endurance1x10^7 times
    Electrical endurance AC11x10^5 times
