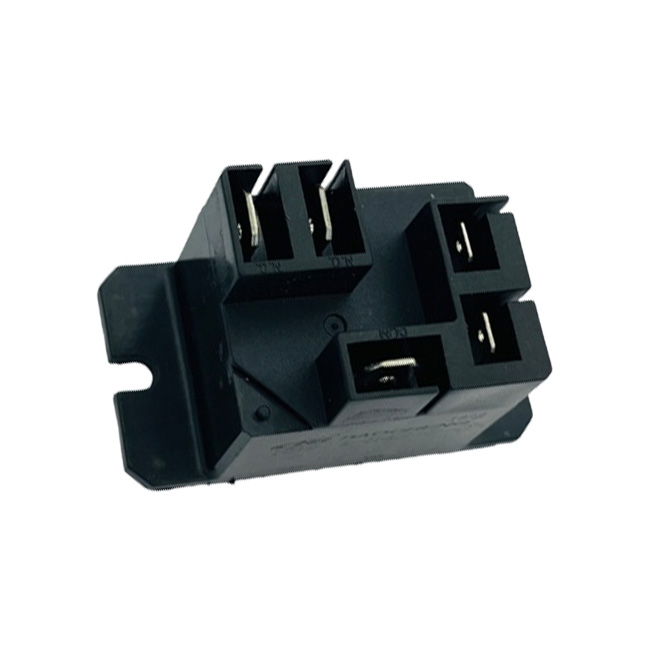

    2.5KV 40A 12V SPDT Relay NB904-12S-S-C For Electric Car Charger Station

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB904-12S-S-C
    Certification : CQC/TUV/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    2.5KV 40A 12V SPDT Relay NB904-12S-S-C For Electric Car Charger Station

    2.5KV 40A 12V SPDT Relay NB904-12S-S-C For Electric Car Charger Station

    40A Power Relay Features:

    1. 2500VAC is available for dielectric to withstand voltage between contact and coil

    2. Class F for coil insulation grade

    3. environmental-friendly

    4. 1 form C,SPST & SPDT

    5. TUV/CQC/UL certification

    6. complied with RoHS-directive


    40A Power Relay Introduce:

    Relay is an automatic switching element with an isolation function. It is widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment. It is one of the most important control elements.


    40A Power Relay Designation:

    NB904E - 12S - S - A W 4KV T-105℃ X

    1. NB90:Model No. (Max. contact load capacity 50A)

    2. 12:Coil Rated Voltage:5V,6V,9V,12V,15V,18V,24V,48V,110V(DC)

    3. S: Package: S: Sealed D: Dustproof

    4. S: Contact Material:AgSno2

    5. A: Contact Form: A: Normally Open B: Normally Close C: SPDT(NO&NC)

    6. W: white None: black

    7. 4KV: Between contact and coil dielectric withstand voltage 4KV, None: 2500V

    8. T-105℃: ambient temperature 105℃. None: normal temperature resistant

    9. X: Customer code


    40A Power Relay Specification:

    Technical Ratings
    Insulation Resistance:1000MΩ
    Dielectric Strength(Between coil&contact):2500VAC
    Operate Time (Max.):15ms
    Release Time (Max.):10ms
    Ambient Temperature:-40℃ ~ 85℃/105℃
    Terminal Type:

    Flange & QT
