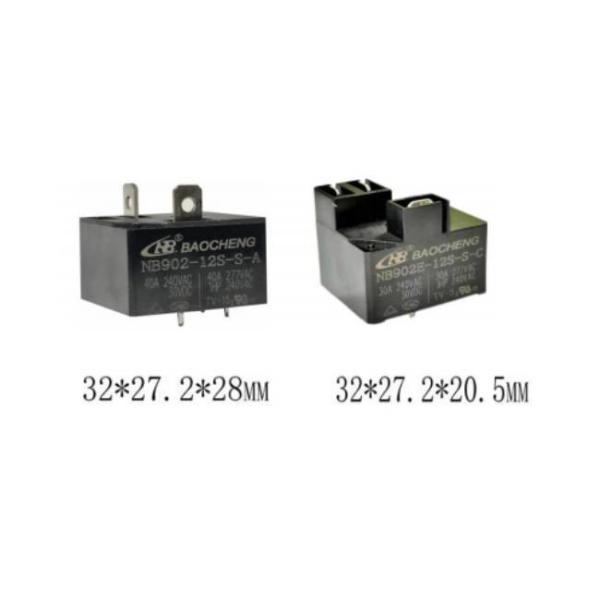

EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A from wholesalers

    Buy cheap EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A from wholesalers
    • Buy cheap EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A from wholesalers

    EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB902-12S-S-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A

    EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A


    40A Power Relay Features:

    1. 2500VAC is available for dielectric to withstand voltage between contact and coil

    2. Class F for coil insulation grade

    3. environmental-friendly

    4. 1 form C,SPST & SPDT

    5. TUV/CQC/UL certification

    6. complied with RoHS-directive


    40A Power Relay Introduce:

    Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.


    40A Power Relay Specification:

    General data:
    Rated withstand impulse voltagecoil contact4kV AC/1min
    between contact1kV AC/1min
    Surge voltage6kV AC
    Insulation resistance1000MΩ(500VDC)
    VibrationFault 10-55Hz(amplitude 1.5mm)
    Endurance 10-55Hz(amplitude 1.5mm)
    ShockFault 98m/S2 ,Endurance 980 m/s2
    Operating temperature-40 ~ 105℃(no condensation)
    Operating humidity20 ~ 85%
    Dimension LxWxH(mm)18.2x10.2x15.5
    Enclosure typeFlux-resistance, sealed
    MountingPCB
    Weight(g)6
    CertificationscULus:E345228/TUV:R50222701/CQC:CQC10002052739
