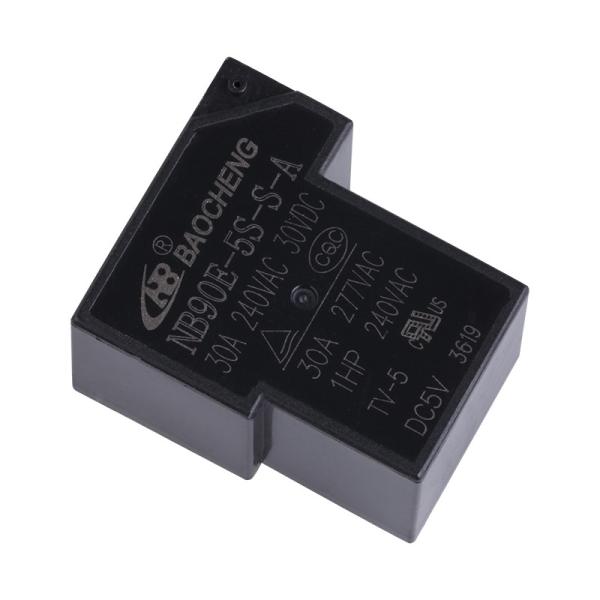

    NO Sealed Type DC 5V 30A Power Relay NB90E-5S-S-A For Car Power Charging Station

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB90E-5S-S-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    NO Sealed Type DC 5V 30A Power Relay NB90E-5S-S-A For Car Power Charging Station

    NO Sealed Type DC 5V 30A Power Relay NB90E-5S-S-A For Car Power Charging Station


    30A Power Relay Description:

    New energy products, like electric vehicles, must be a trend in the next few days. So more and more fast-charging stations are made and satisfy the need for electric cars' power-charging.NB90 series relay is specially applied to the charging point. It is a high switching capacity for contacts, is a dust-proof or sealed type option, and is environmentally friendly.


    30A Power Relay Features:

    1. 2500VAC for dielectric withstand voltage between contact and coil

    2. 900mW or 600mW for option

    3. TUV/CQC/UL certification


    30A Power Relay Specification:

    Contact Ratings
    Contact Form:1A, 1B, 1C
    Contact Material:AgCdO, AgSnO2
    Contact Load Capacity:20A 277VAC/250VAC/125VAC; 17A 277VAC; 16A 250VAC
    TV-8 TV-5 120VAC,240VAC
    Max. Switching Current:20A
    Max. Switching Power:5540VA/480W
    Mechanical Endurance:1*10^7 OPS
    Electrical Endurance:5*10^4 OPS

    PCB Layout (Bottom View)

    NB90E pcb layout

    Wiring Diagram (Bottom View)

    NB90E wiring diagram
