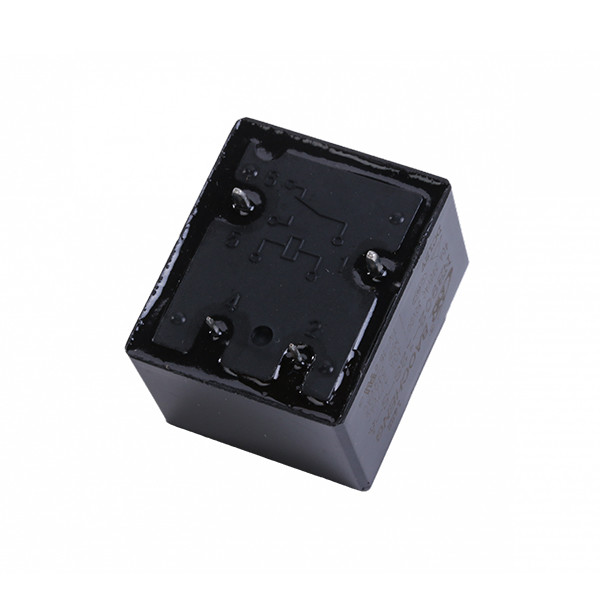

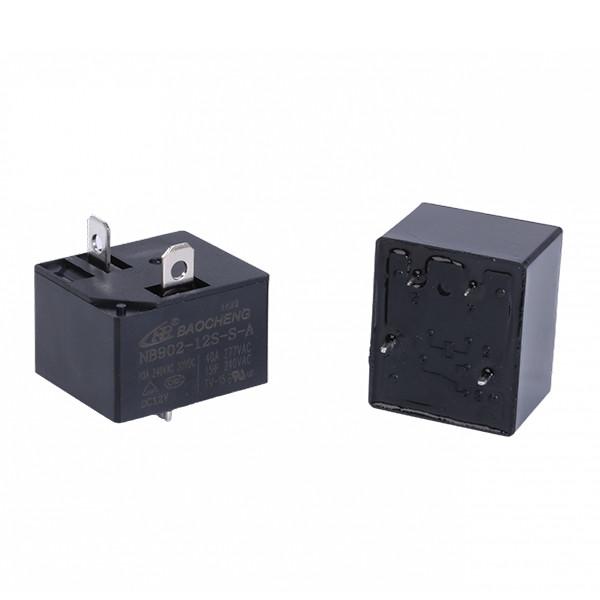

    Reliable 40A Power Relay NB902-12S-S-A Small Volume For New Energy

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB902-12S-S-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    Reliable 40A Power Relay NB902-12S-S-A Small Volume For New Energy

    Reliable 40A Power Relay NB902-12S-S-A Control Element New Energy Small Volume


    40A Power Relay Features:

    1. 2500VAC is available for dielectric to withstand voltage between contact and coil

    2. Class F for coil insulation grade

    3. environmental-friendly

    4. 1 form C, SPST & SPDT

    5. TUV/CQC/UL certification

    6. complied with RoHS-directive


    40A Power Relay Introduce:

    The relay is an electric control device, which is an electrical appliance that causes the controlled quantity to undergo a predetermined step change in the electrical output circuit when the change of the input quantity (excitation quantity) meets the specified requirements. It has an interactive relationship between the control system (also known as the input loop) and the controlled system (also known as the output loop). Usually used in automatic control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.


    40A Power Relay Specification:

    General data:
    Rated withstand impulse voltagecoil contact4kV AC/1min
    between contact1kV AC/1min
    Surge voltage6kV AC
    Insulation resistance1000MΩ(500VDC)
    VibrationFault 10-55Hz(amplitude 1.5mm)
    Endurance 10-55Hz(amplitude 1.5mm)
    ShockFault 98m/S2 ,Endurance 980 m/s2
    Operating temperature-40 ~ 105℃(no condensation)
    Operating humidity20 ~ 85%
    Dimension LxWxH(mm)18.2x10.2x15.5
    Enclosure typeFlux-resistance, sealed
    MountingPCB
    Weight(g)6
    CertificationscULus:E345228/TUV:R50222701/CQC:CQC10002052739
