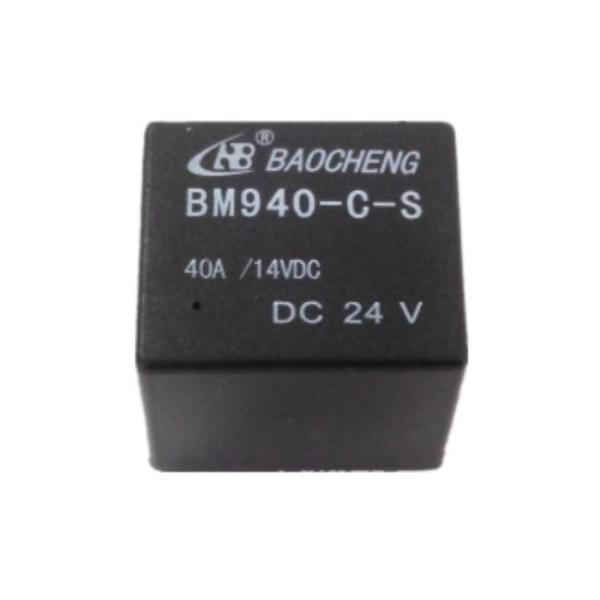

BM940-C-S 40A PCB Relay 12V 40A SPDT Sealed For Electric EV Charger Point

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap BM940-C-S 40A PCB Relay 12V 40A SPDT Sealed For Electric EV Charger Point from wholesalers

    Buy cheap BM940-C-S 40A PCB Relay 12V 40A SPDT Sealed For Electric EV Charger Point from wholesalers
    • Buy cheap BM940-C-S 40A PCB Relay 12V 40A SPDT Sealed For Electric EV Charger Point from wholesalers

    BM940-C-S 40A PCB Relay 12V 40A SPDT Sealed For Electric EV Charger Point

    Ask Lasest Price
    Brand Name : NBC
    Model Number : BM940-C-S
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    BM940-C-S 40A PCB Relay 12V 40A SPDT Sealed For Electric EV Charger Point

    BM940-C-S 40A PCB Relay 12V 40A SPDT Sealed For Electric EV Charger Point


    40A Power Relay Description:

    BM940 series universal automotive relay has a large contact load, and a rated current is 40A, but the maximum is 45A at 14VDC, which can suffer a big inrush current. Small size, PCB mounting,11mm pin pitch for EU type,8mm pin pitch for USA type, SPST and SPDT to option, especially use in automatic control equipment and automobile industry...


    40A Power Relay Features:

    1. size 26.8*21.5*22.3mm, only 19g

    2. SPST or SPDT,11mm or 8mm pin pitch for option

    3. rated current 40A

    4. sealed,dust-proof or open type to select


    40A Power Relay FAQ:

    Q1: What is the delivery time like?

    A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.

    Q2: How about after-sales service?
    A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.


    40A Power Relay Specification:

    Contact Configuration1 Form A
    Contact materialAg alloy
    Max. switching voltage30VDC,277VAC
    Max. switching power2,770VA
    Contact ratings5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC
    Contact resistanceMax. 100mΩ(1A/6VDC)
    Mechanical endurance1x10^7 times
    Electrical endurance AC11x10^5 times
