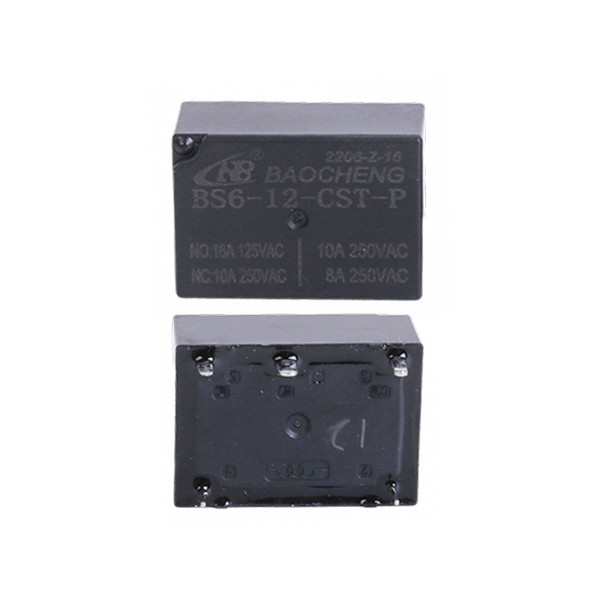

    AUTOMOTIVE DC12V CURRENT CONTROL RELAY SHORT CIRCUIT PROTECTION UNINTERRUPTED LINE

    Ask Lasest Price
    Brand Name : NBC
    Model Number : BS6-12-CST-P
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    AUTOMOTIVE DC12V CURRENT CONTROL RELAY SHORT CIRCUIT PROTECTION UNINTERRUPTED LINE

    Automotive DC12V Current Control Relay Short Circuit Protection Uninterrupted Line


    Universal Automotive Relay introduces:

    The relay is kept in the released state by the permanent magnet. After the working voltage is applied, the electromagnetic induction makes the armature and the permanent magnet generate an attractive and repulsive torque, resulting in a downward movement, and finally reaches the state of attraction. When the relay is working, the electromagnet is energized, the armature is sucked down to contact, and the working circuit is closed. When the electromagnet is powered off, it loses its magnetism, and the spring pulls up the armature to cut off the working circuit. Therefore, the relay is a switch that uses an electromagnet to control the on-off of the working circuit.


    Universal Automotive Relay Feature:

    1. 40A contact switching capability;
    2. Compact structure;
    3. The dielectric withstand voltage between the contact and the coil is 2.5KV, up to 4KV;
    4. It has a group of normally open, normally closed, and changeover contacts;
    5. Plastic seal type and open type are available;
    6. UL insulation class: Class F insulation class.


    Universal Automotive Relay Parameters:

    Contact parameters
    contact form1A
    contact materialAgCdO, AgSnO2
    Contact load1A:16A/250VAC, 30VDC; 12A/250VAC,30VDC; TV-5 125VAC
    Maximum switching current16A
    Maximum Switching Power4000VA/480W
    mechanical durability1*10^7OPS
    electrical durability1*10^5OPS

    Universal Automotive Relay FAQ:

    Q1: What is the delivery time like?
    A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7 days to the destination in China.
    Q2: How about after-sales service?
    A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.
