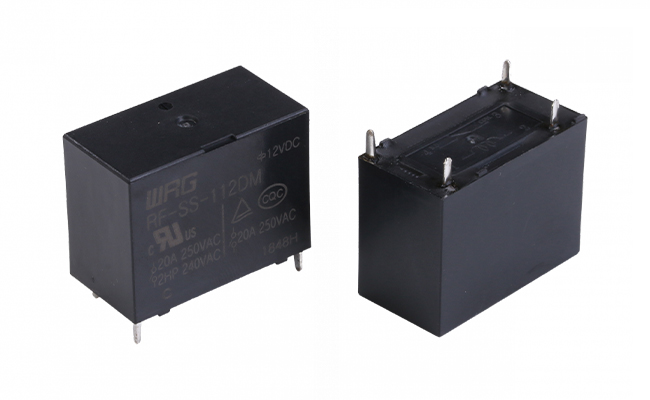

    Control Switch PCB Mount Relay Sufficient Insulation Distance RF-SS-112DM

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RF-SS-112DM
    Certification : UL/TUV/CQC/VDE
    Price : negotiable
    Payment Terms : Western Union, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Control Switch PCB Mount Relay Sufficient Insulation Distance RF-SS-112DM

    Control Switch PCB Mount Relay Sufficient Insulation Distance RF-SS-112DM


    PCB Mount Relay Description:
    RF series power relay, the mounting way has two kinds, one is PCB mount with QT terminal, another is PCB mount only.No matter which kind, both of them just 1 kind of contact form, that form A. Rated current from 20A to 32A, high endurance, enough insulation distance for control switch, meet with IEC60079-15 anti-explosion standard. some other requirements such as IEC60335-1 are available too, and also got UL/QC/ TUV/VDE certifications particularly use for home appliances.

    PCB Mount Relay Introduce:
    The relay is an electrical control device, which can give a specified input quantity and keep it for a long enough time so that the controlled quantity will undergo a predetermined step change in the electrical output circuit. When the input volume drops to a certain level and maintains for a long enough time, it returns to the initial state.


    PCB Mount Relay Specification:

    Contact Ratings
    Contact Form:1A, 1B, 1C
    Contact Material:AgCdO, AgSnO2
    Contact Load Capacity:20A 277VAC/250VAC/125VAC; 17A 277VAC; 16A 250VAC
    TV-8 TV-5 120VAC,240VAC
    Max. Switching Current:20A
    Max. Switching Power:5540VA/480W
    Mechanical Endurance:1*107OPS
    Electrical Endurance:5*104OPS
