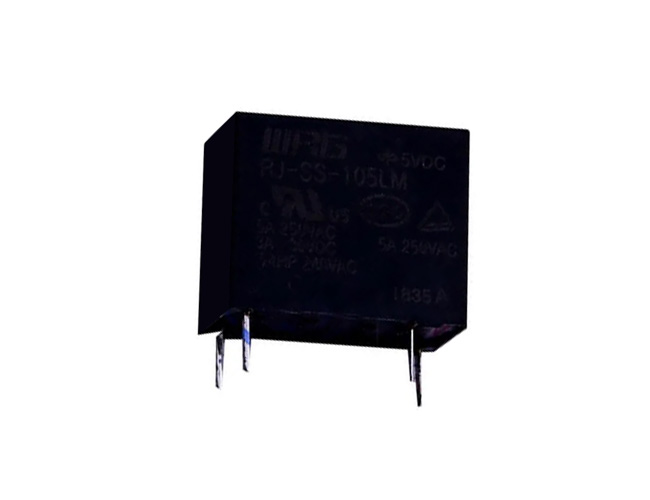

    5 Volt 5 Amp SPST PCB Mount Relay 200mW 4KV RJ-SS-105LM For Intelligent Appliance

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RJ-SS-105LM
    Certification : TUV/UL/CQC
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    5 Volt 5 Amp SPST PCB Mount Relay 200mW 4KV RJ-SS-105LM For Intelligent Appliance

    5 Volt 5 Amp SPST PCB Mount Relay 200mW 4KV RJ-SS-105LM For Intelligent Appliance

    PCB Mount Relay Description:
    RJ series power relay is a type of miniature package with a universal terminal footprint and a lightweight general-purpose relay. High sensitivity,
    low coil power with 200mW minimum.4000V for dielectric withstand voltage between coil and contact, also can option anti-explosion type.

    PCB Mount Relay Applications:
    1. Smart appliance: TV, water heater.
    2. office device: a shredder.
    3. industrial equipment: industry safety loop control

    PCB Mount Relay FAQ:

    Q: How about the delivery time?

    If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.

    Q: How is the after-sales service?
    If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.


    PCB Mount Relay Specification:

    Contact Ratings
    Contact Form:1A, 1B, 1C
    Contact Material:AgCdO, AgSnO2
    Contact Load Capacity:20A 277VAC/250VAC/125VAC; 17A 277VAC; 16A 250VAC
    TV-8 TV-5 120VAC,240VAC
    Max. Switching Current:20A
    Max. Switching Power:5540VA/480W
    Mechanical Endurance:1*107OPS
    Electrical Endurance:5*104OPS
