SPDT Power D 1KV Non - Latching Relay 5 Volt 2A RSA-105D PCB Mount For Fan

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap SPDT Power D 1KV Non - Latching Relay 5 Volt 2A RSA-105D PCB Mount For Fan from wholesalers

    Buy cheap SPDT Power D 1KV Non - Latching Relay 5 Volt 2A RSA-105D PCB Mount For Fan from wholesalers
    • Buy cheap SPDT Power D 1KV Non - Latching Relay 5 Volt 2A RSA-105D PCB Mount For Fan from wholesalers

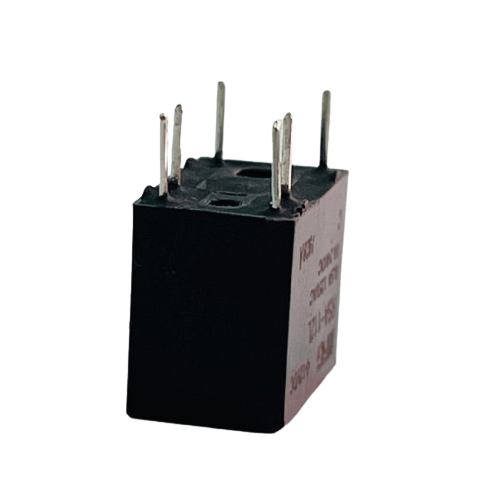

    SPDT Power D 1KV Non - Latching Relay 5 Volt 2A RSA-105D PCB Mount For Fan

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RSA-105D
    Certification : UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    SPDT Power D 1KV Non - Latching Relay 5 Volt 2A RSA-105D PCB Mount For Fan

    SPDT Power D 1KV Non-Latching Relay 5 Volt 2A RSA-105D PCB Mount For Fan


    PCB Mount Relay Description:
    RSC series power relay that pretty suitable for small current, low consumption, and environmental-friendly electrical products or small home appliances.3V,5V,6V,9V,12V,24V input to choose from,0.2W or 0.36w for coil power, rated current 3A,3g for weight, size with 15.5*10.6*12mm.

    PCB Mount Relay Applications:
    Electric vehicle supply equipment, inverters, frequency converters, servo drive power supplies, electric welding machines, shredders, water heaters, wall-mounted matches, thermostats, small home appliance control panels, smart homes, smart sockets, UPS, microwave sensors.


    PCB Mount Relay Specification:

    General data:
    Rated withstand impulse voltagecoil contact4kV AC/1min
    between contact1kV AC/1min
    Surge voltage6kV AC
    Insulation resistance1000MΩ(500VDC)
    VibrationFault 10-55Hz(amplitude 1.5mm)
    Endurance 10-55Hz(amplitude 1.5mm)
    ShockFault 98m/S2 ,Endurance 980 m/s2
    Operating temperature-40 ~ 105℃(no condensation)
    Operating humidity20 ~ 85%
    Dimension LxWxH(mm)18.2x10.2x15.5
    Enclosure typeFlux-resistance,sealed
    MountingPCB
    Weight(g)6
    CertificationscULus:E345228/TUV:R50222701/CQC:CQC10002052739
