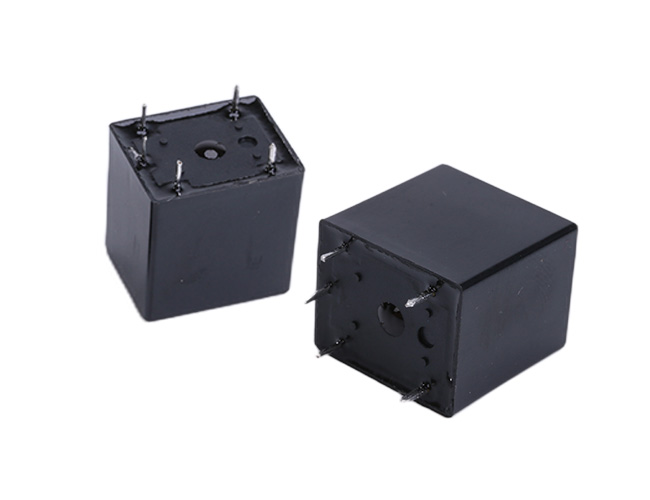

    12V 20A SPST 4pin 1.5KV Dielectric Withstand 922-12VDC - SL - A PCB Mount Relay

    Ask Lasest Price
    Brand Name : NBC
    Model Number : 922-12VDC-SL-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    12V 20A SPST 4pin 1.5KV Dielectric Withstand 922-12VDC - SL - A PCB Mount Relay

    12V 20A SPST 4pin 1.5KV Dielectric Withstand 922-12VDC-SL-A PCB Mount Relay


    PCB Mount Relay Description:
    NBC 922 series automotive relay,5-48V input voltage, maximum current reach 20A, small size, low coil power consumption,1.5KV dielectric withstand voltage between coil and contact,environmental-friendly and PCB board mounting directly, very fit the automotive industry, sound equipment, automatic system, etc. Products are approved by TUV/CQC/UL safety system testing, reliable and safe.


    PCB Mount Relay Features:
    1. SPST, normal open,4pins
    2. rated current 20A
    3. class F insulation
    4. environmental-friendly
    5. dielectric withstands 1.5KV

    PCB Mount Relay Specification:

    Contact Ratings
    Contact Form:1A, 1B, 1C
    Contact Material:AgCdO, AgSnO2
    Contact Load Capacity:20A 277VAC/250VAC/125VAC; 17A 277VAC; 16A 250VAC
    TV-8 TV-5 120VAC,240VAC
    Max. Switching Current:20A
    Max. Switching Power:5540VA/480W
    Mechanical Endurance:1*107OPS
    Electrical Endurance:5*104OPS
