    SPST 80A Gap2.0mm High Load Arc Extinction Power Relay NB901-12S-S-A For AC DC Inverter


    NBC

    SPST 80A Gap2.0mm High Load Arc Extinction Power Relay NB901-12S-S-A for AC-DC Inverter


    Description:

    It is a high load switching capability power mount relay,can reach 80A.Patented design with arc extinction structure,class F insulation,sealed type,4000VAC between contacts and between coil & contacts,specially suitable for industrial equipment,such like AC-DC inverter,PLC,UPS..


    Feature:

    1. Contact switching current: 80A

    2. Sealed type

    3. Gap is 2.0mm by default.

    4. Coil insulation grade Class F

    5. Arc extinction structure of patent


    Application:

    1. Industry

    2. Machinery


    Specification:

    Contact Rating
    Contact Form1A
    Contact MaterialAgSnO2
    Contact Load CapacityNB901
    60A 277VAC 80A 48VDC 50A 240VDC 50A 277VAC TV-15
    Switching Power Max.3840W/ 13850VA
    Switching Voltage Max.48VDC/277VAC
    Switching Current Max.80A
    Contact Resistance Max.20mΩ(1A ,24VDC)
    Life expectancyElectrical40A: 1x105 50A:1x104 60A: 6x103 80A:3X104 DC48V
    Machanical10 7

    Safety Certification
    ApprovalCQCUL
    Load50A 240VAC50A 277VAC TV-15

    Coil Rating
    Coil Power 2.25W
    No.Nominal
    Voltage
    VDC
    Max.
    Voltage
    VDC
    Coil Resistance Ω±10%Pick-up Voltage
    VDC Max.
    Drop-out Voltage
    VDC Min.
    0121213.26490.6

    Technical Rating
    Insulation ResistanceMin.1000MΩIEC 60255-5
    Dielectric StrengthBetween Contacts4000 VACIEC 60255-5
    Between Coil&Contact4000VACIEC 60255-5
    Operate Time≤15ms
    Release Time≤10ms
    Shock ResistanceOperation extremes 10G Damage limits 100GIEC 68-2-27 test Ea
    Vibration Resistance10Hz~55Hz double amplitude 1.5mmIEC 68-2-6 test Fc
    Ambient Temperature﹣55℃~85℃
    Relative Humidity85% RH , 40℃IEC 68-2-3 test Ca
    WeightApprox.30.0g
    PackageSealed;Dust-proof type

    3 Dimension and electrocircuit of 80 ampere Arc extinction power relay


    11
    Outline Dimensions
    12

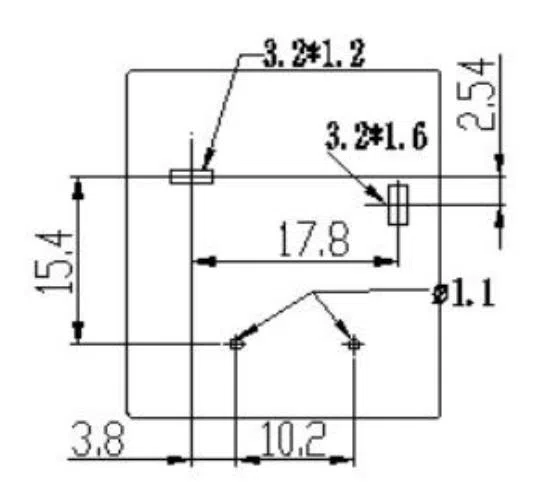

    Bottom View Layout
    13
    Wiring Diagram(Bottom View)
