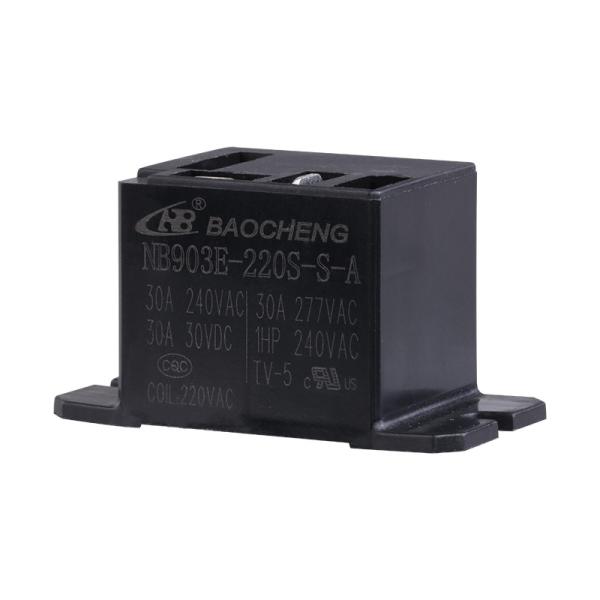

    SPST Power Relay 30A 220V AC 2.5KV 4KV Dielectric Withstand Flange QT Connection

    Ask Lasest Price
    Brand Name : WRG
    Model Number : NB903E-220S-S-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    SPST Power Relay 30A 220V AC 2.5KV 4KV Dielectric Withstand Flange QT Connection

    SPST Power Relay 30A 220V AC 2.5KV 4KV Dielectric Withstand Flange QT Connection


    30A Power Relay Description:
    NBC 903 series reply, is the one input voltage with both DC and AC to choose from, maximum current 30A or 40A for options, flange and QT terminal type for heavy-duty, dielectric withstand voltage have 2.5kv and 4kv to switch,environmental-friendly product, particularly applies to automotive manufacturing, industrial control system...


    30A Power Relay Applications:
    1. industry control system: such as PLC, RTU, SCADA...

    2. automobile industry: car stereo, car anti-lock brake system, car starter...

    30A Power Relay Specification:

    Technical Ratings
    Insulation Resistance:1000MΩ
    Dielectric Strength(Between coil&contact):2500VAC
    Operate Time (Max.):15ms
    Release Time (Max.):10ms
    Ambient Temperature:-40℃ ~ 85℃/105℃
    Terminal Type:Flange & QT


    30A Power Relay Introduce:

    Relay is an automatic switching element with an isolation function. It is widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment. It is one of the most important control elements.
