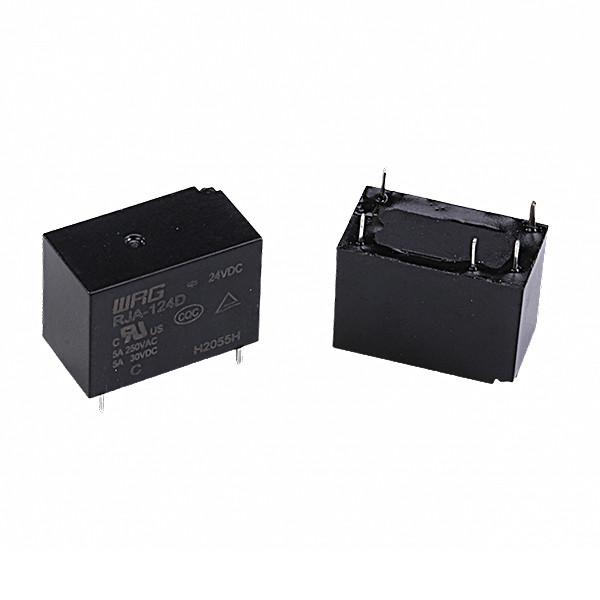

PCB Mount 24V 5 Amp 5 Pin SPDT Relay Power D 4KV Dielectric Withstand

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap PCB Mount 24V 5 Amp 5 Pin SPDT Relay Power D 4KV Dielectric Withstand from wholesalers

    Buy cheap PCB Mount 24V 5 Amp 5 Pin SPDT Relay Power D 4KV Dielectric Withstand from wholesalers
    • Buy cheap PCB Mount 24V 5 Amp 5 Pin SPDT Relay Power D 4KV Dielectric Withstand from wholesalers

    PCB Mount 24V 5 Amp 5 Pin SPDT Relay Power D 4KV Dielectric Withstand

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RJA-124D
    Certification : TUL/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    PCB Mount 24V 5 Amp 5 Pin SPDT Relay Power D 4KV Dielectric Withstand

    PCB Mount 24V 5 Amp 5 Pin SPDT Relay Power D 4KV Dielectric Withstand


    SPDT Power Relay Description:
    RJA series power relays are the ones that with small in size and lightweight, small current 5A, not only 4KV dielectric withstand voltage,
    but also meet with IEC60079-15 anti-explosion standard, safety system CQC/TUV/UL were approved as well, particularly useful in home appliances.

    SPDT Power Relay Feature:
    1. 1 form C,5pin
    3. rated current 5A
    3. class A insulation

    4. dielectric withstand 4KV between coil and contact


    SPDT Power Relay Specification:

    General data:

    Rated withstand impulse voltage

    coil contact

    4kV AC/1min

    between contact

    1kV AC/1min

    Surge voltage

    10kV AC

    Insulation resistance

    1000MΩ(500VDC)

    Vibration

    Fault 10-55Hz(amplitude 1.5mm)

    Endurance 10-55Hz(amplitude 1.5mm)

    Shock

    Fault 98m/S2 ,Endruance 980 m/s2

    Operating temperature

    -40 ~ 105℃(no condensation)

    Operating humidity

    20 ~ 85%

    Dimension LxWxH(mm)

    17.6*10.2*12.7

    Enclosure type

    Flux-resistance, sealed

    Mounting

    PCB

    Weight(g)

    5.7

    Certifications

    cULus:E345228/TUV:R50246903/CQC:CQC12002084196


    For further datasheets, please click the link below or contact us.
    PS-064-2020-002 RJA-124D.pdf
