    16 Amp 12V SPST Relay Class A Insulation Flux Resistance For Vacuum Cleaner

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RMI-SS-112LM
    Certification : CQC/TUV/UL
    Price : negotiable
    Payment Terms : T/T, D/A, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4 weeks
    • Product Details
    • Company Profile

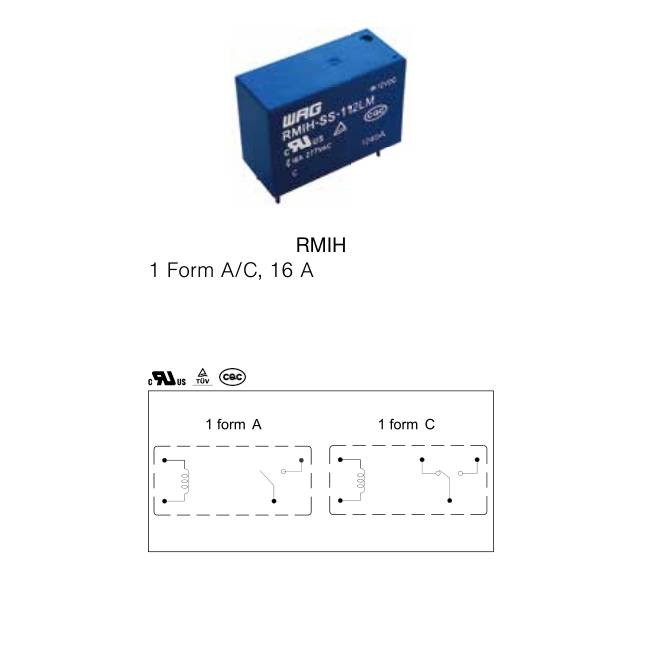

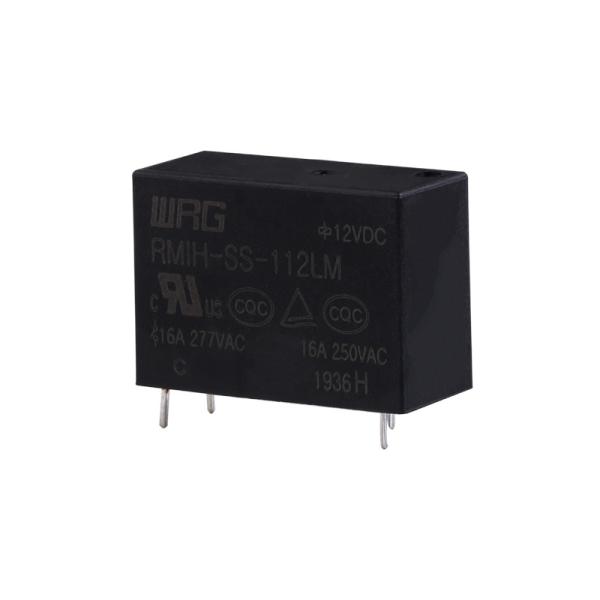

    16 Amp 12V SPST Relay Class A Insulation Flux Resistance For Vacuum Cleaner

    16 Amp 12V SPST Relay Class A Insulation Flux Resistance For Vacuum Cleaner


    12V SPST Relay Features:

    1. high capacity, high endurance

    2. SPST, rated current 16A

    3. reliable and highly sensitive

    4. 60079-15 anti-explosion safety standard is approved


    12V SPST Relay Introduce:

    A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.


    12V SPST Relay Specification:

    General data
    Rated withstand impulse voltagecoil contact5kV AC/1min
    between contact1kV AC/1min
    Surge voltage10kV AC(1.2/50μs)
    Insulation resistance1000MΩ(500VDC)
    VibrationFault 10-55Hz(amplitude 1.5mm)
    Endurance 10-55Hz(amplitude 1.5mm)
    ShockFault 98m/S2 ,Endruance 980 m/s2
    Operating temperature-40 ~ 105℃(no condensation)
    Operating humidity20 ~ 85%
    Dimension LxWxH(mm)29.2x12.8x20.6
    Enclosure typeFlux-resistance, sealed
    MountingPCB
    Weight(g)14
    CertificationscULus:E345228/TUV:R50242245/CQC:CQC11002066332

    For further datasheets, please click the link below or contact us.

    RMI & RMIH Series.pdf


    12V SPST Relay FAQ:
    Q1: Why is WRG relay?
    A1: WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

    Q2: What is the delivery time like?
    A2: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.
