    PCB Mount Sealed Universal Automotive Relay EV Charging 12V 30A SPDT Relay

    Ask Lasest Price
    Brand Name : NBC
    Model Number : MKC-S-12
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    PCB Mount Sealed Universal Automotive Relay EV Charging 12V 30A SPDT Relay

    PCB Mount Sealed Universal Automotive Relay EV Charging 12V 30A SPDT Relay

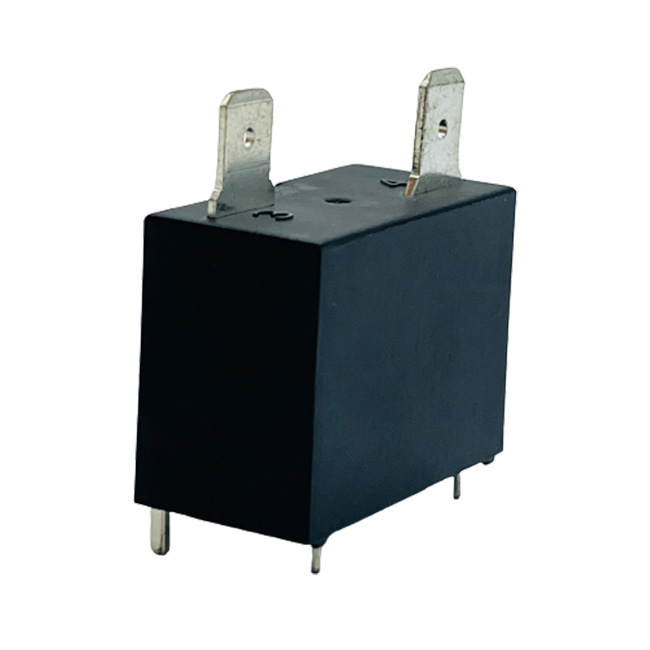

    Universal Automotive Relay Description:

    MK series universal automotive relay is a compact, light, and microminiature relay. It has a large contact load, a rated current that can reach 30A,

    extended temperature range up to 105℃, Form A or Form C to option, sealed or flux-resistance to select. At the same time, it is an environmentally friendly product, suitable for car windshield wipers, automatic doors or windows, and car central door locks.


    Universal Automotive Relay Feature:

    1. lightweight, only 3g

    2. SPST or SPDT

    3. microminiature size,12*12.8*9.8mm

    4. big capacity, maximum 30A

    5. flux-resistance or sealed


    Universal Automotive Relay FAQ:
    Q: Why is WRG relay?
    WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

    Q: What is the delivery time like?
    If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.


    Universal Automotive Relay Technical Rating:

    Insulation Resistance100MQ(500VDC)Min.
    Dielectric StrengthBetween Open Contacts500VAC 50Hz
    Between Contact and Coil4000VAC 50Hz
    Shock ResistanceOperation extremes 10G, Damage limits 100G
    Vibration ResistanceOperation extremes 10-500Hz,4.4G, Damage limits 10-500Hz, 4.4G
    Ambient Temperature-40°C ~ 85°C
    Relative Humidity85% (20°C )
    Weight6g

    Quality PCB Mount Sealed Universal Automotive Relay EV Charging 12V 30A SPDT Relay for sale
