    15A 12VDC Universal Automotive Relay SPDT Sealed Flux Resistance For Car Flasher

    Ask Lasest Price
    Brand Name : NBC
    Model Number : MQ8-C-S-DC12V
    Certification : CQC:CQC22002329832/TUV:R50518131
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

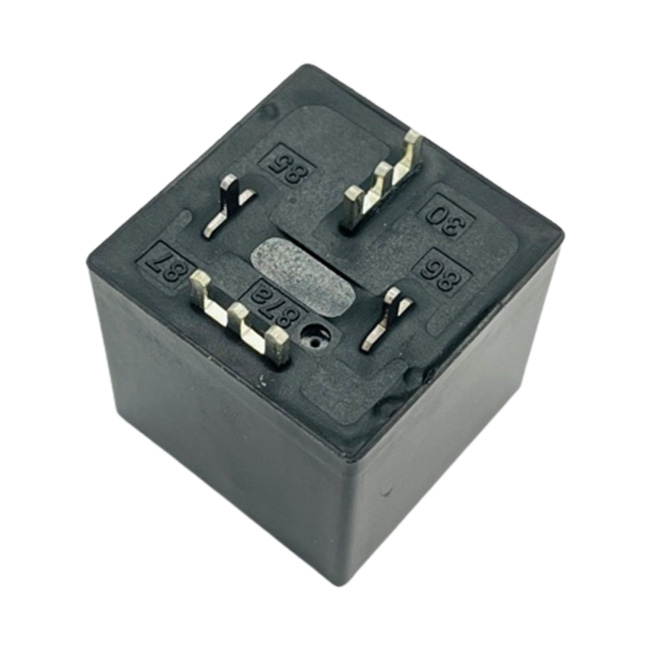

    15A 12VDC Universal Automotive Relay SPDT Sealed Flux Resistance For Car Flasher

    15A 12VDC Universal Automotive Relay SPDT Sealed Flux Resistance For Car Flasher


    Universal Automotive Relay Description:
    MQ8 series relays are widely used for automotive products, small in size, safe and reliable, long-lasting, perfectly compatible with G8QNxxx of Omron, HFKWxxx of Hongfa,895xxx of Songchuan, etc.


    Universal Automotive Relay Introduces:

    Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.


    Universal Automotive Relay FAQ:

    Q1: What is the delivery time like?

    A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.

    Q2: How about after-sales service?
    A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.


    Universal Automotive Relay Contact Rating:

    Contact Form1A ,1B, 1C
    Contact materialAgSnO2
    Contact Rating (Resistive)NO:10A 125VAC 7A 250VAC 5A 250VAC NO:20A 14VDC
    NC:10A 125VAC 7A 250VAC 5A 250VAC
    Switching Power Max.280W 1250VA
    Switching Voltage Max.30VDC 125VAC
    Switching Current Max.20 A
    Voltage Drop≤50mV ( @10A) Item 3.12 of IEC 255-7
    EnduranceElectrical105 Item 3.30 of IEC 255-7
    Mechanical107 Item 3.31 of IEC 255-7

    Quality 15A 12VDC Universal Automotive Relay SPDT Sealed Flux Resistance For Car Flasher for sale
