    SPST Sealed PCB Universal Automotive Relay 12V 30A For EV Charging Station

    Ask Lasest Price
    Brand Name : NBC
    Model Number : MKA-S-12
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

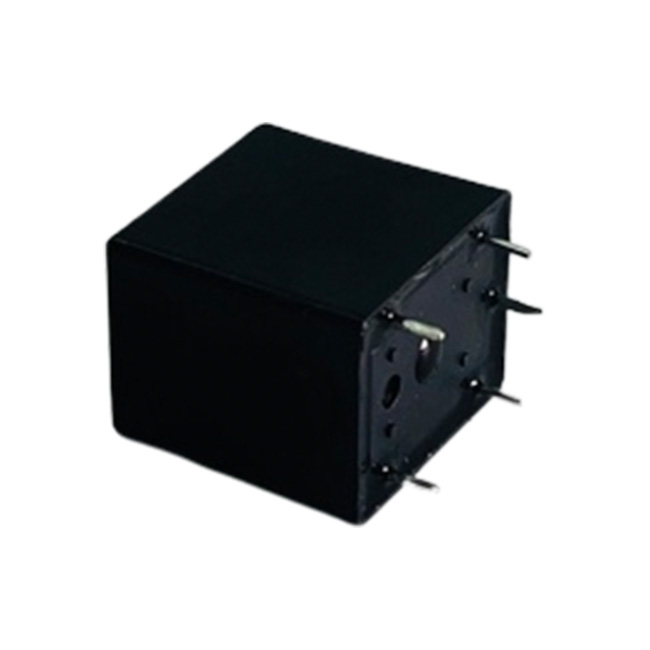

    SPST Sealed PCB Universal Automotive Relay 12V 30A For EV Charging Station

    SPST Sealed PCB Universal Automotive Relay 12V 30A For EV Charging Station


    Universal Automotive Relay Description:

    MK series universal automotive relay is a compact, light, and microminiature relay. It has a large contact load, a rated current that can reach 30A,

    extended temperature range up to 105℃, Form A or Form C to option, sealed or flux-resistance to select. At the same time, it is environmental

    friendly product, suitable for car windshield wipers, automatic doors or windows, car central door locks...


    Universal Automotive Relay Feature:

    1. lightweight, only 3g

    2. SPST or SPDT

    3. microminiature size,12*12.8*9.8mm

    4. big capacity, maximum 30A

    5. flux-resistance or sealed


    Universal Automotive Relay introduces:

    A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.


    Universal Automotive Relay Technical Rating:

    Insulation Resistance:100MΩ
    Dielectric Strength(Between coil&contact):500VAC
    Operate Time (Max.):10ms
    Release Time (Max.):7ms
    Ambient Temperature:-40℃ ~105℃
    Terminal Type:THT & Plug-In
