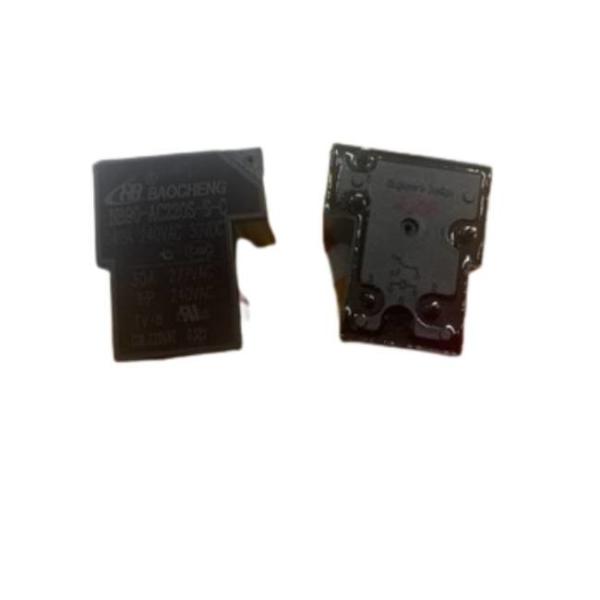

    NB90-AC220S-S-C SPDT 40A 220V AC Power Relay Black Sealed For Electric Car Charger Grant

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB90-AC220S-S-C
    Certification : TUL/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    NB90-AC220S-S-C SPDT 40A 220V AC Power Relay Black Sealed For Electric Car Charger Grant

    NB90-AC220S-S-C SPDT 40A 220V AC Power Relay Black Sealed For Electric Car Charger Grant


    AC Power Relay Description:

    NB90 AC series reply, there are with E and without E. The difference between both is mainly the maximum switching current. With E is 30A, and without E is 40A. From the model NB90-AC220S-S-C, we can find it, it is a power relay with AC220V,40A, NO.&NC., sealed type, black housing,1.2W coil power.


    AC Power Relay Features:

    1. 4000VAC or 2500VAC is available for dielectric to withstand voltage between contact and coil

    2. Class F for coil insulation grade

    3. Sealed type

    4. Normally open and normally close

    5. Max 50A


    AC Power Relay Name rule:

    NB901E - 12S - S - A W 4KV T-105℃ X

    1. NB90:Model No. (Max. contact load capacity 40A)

    2. 12:Coil Rated Voltage:5V,6V,9V,12V,15V,18V,24V,48V,110V(DC)

    3. S: Package: S: Sealed D: Dust-proof type

    4. S: Contact Material:AgSno2

    5. A: Contact Form: A: Normally Open B: Normally Close C: SPDT(NO&NC)

    6. W: white None: black

    7. 4KV: Between contact and coil dielectric withstand voltage 4KV None: 2500V

    8. T-105℃: ambient temperature 105℃. None: normal temperature resistant

    9. X: Customer code


    AC Power Relay Specification:

    General data:

    Rated withstand impulse voltage

    coil contact

    2500VAC/4000VAC

    between contact

    1500VAC

    Surge voltage

    130% of Rated Voltage

    Insulation resistance

    1000MΩ(at 500VDC)

    Vibration

    10Hz~55Hz, Double Amplitude 1.5mm

    Shock

    Functional 98m/s2; Destructive 980m/s2

    Operating temperature

    ﹣55℃~85℃

    Operating humidity

    5% to 85% RH

    Dimension LxWxH(mm)

    32*27.2*20(mm)

    Enclosure type

    Sealed; Dust-proof type

    Weight(g)

    30g

    Certifications

    UL, TUV, CQC
