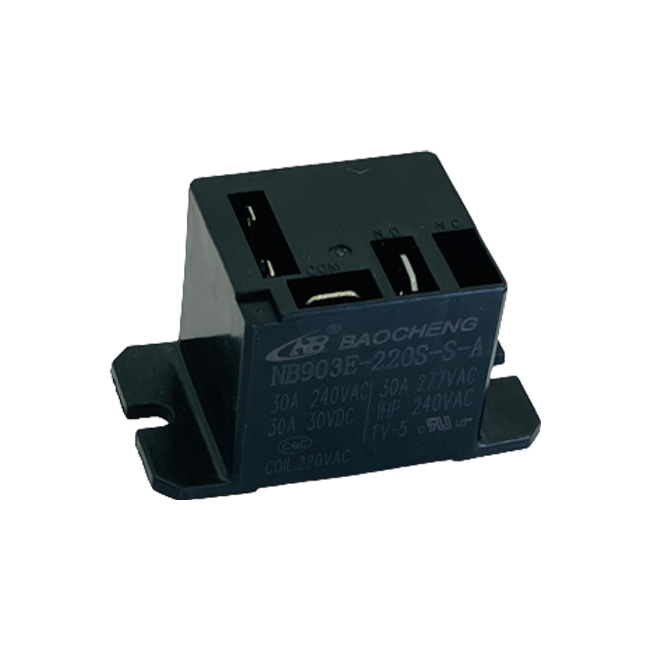

    30A 220V AC Power Relay Sealed 2.5KV NB903E-220S-S-A For Industry Control System

    Ask Lasest Price
    Brand Name : WRG
    Model Number : NB903E-220S-S-A
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    30A 220V AC Power Relay Sealed 2.5KV NB903E-220S-S-A For Industry Control System

    30A 220V AC Power Relay Sealed 2.5KV NB903E-220S-S-A For Industry Control System


    AC Power Relay Features:
    1. SPST, flange, and quick terminal
    2. environmental-friendly

    3. 2.5kv or 4kv dielectric withstand voltage for option

    AC Power Relay Applications:
    1. industry control system: such as PLC, RTU, SCADA...

    2. automobile industry: car stereo, car anti-lock brake system, car starter...

    AC Power Relay Specification:

    Contact Ratings

    Contact Form:

    1A, 1B, 1C

    Contact Material:

    AgCdO, AgSnO2

    Contact Load Capacity:

    1A:30A/240VAC,30VDC

    1B:30A/240VAC,30VDC

    1C:30A/240VAC,30VDC

    Max. Switching Current:

    30A

    Max. Switching Power:

    9600VA/1200W

    Mechanical Endurance:

    1*10^7OPS

    Electrical Endurance:

    1*10^5OPS


    AC Power Relay Note:

    1. When installed on PCB, and entire washing is needed, please notify us before ordering, so as to provide proper items;
    2. If dielectric strength between coil&contacts has to be over 2500VAC, please notify us before ordering, so as to
    provide proper items;
    3. Avoid applying under strong magnetic or shock extremes, or the technical rating will change.
