SPST Power D 4KV Mini Power Relay 24 Volt 5A RJA - 124DM PCB Mount Relay

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap SPST Power D 4KV Mini Power Relay 24 Volt 5A RJA - 124DM PCB Mount Relay from wholesalers

    Buy cheap SPST Power D 4KV Mini Power Relay 24 Volt 5A RJA - 124DM PCB Mount Relay from wholesalers
    • Buy cheap SPST Power D 4KV Mini Power Relay 24 Volt 5A RJA - 124DM PCB Mount Relay from wholesalers

    SPST Power D 4KV Mini Power Relay 24 Volt 5A RJA - 124DM PCB Mount Relay

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RJA-124DM
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

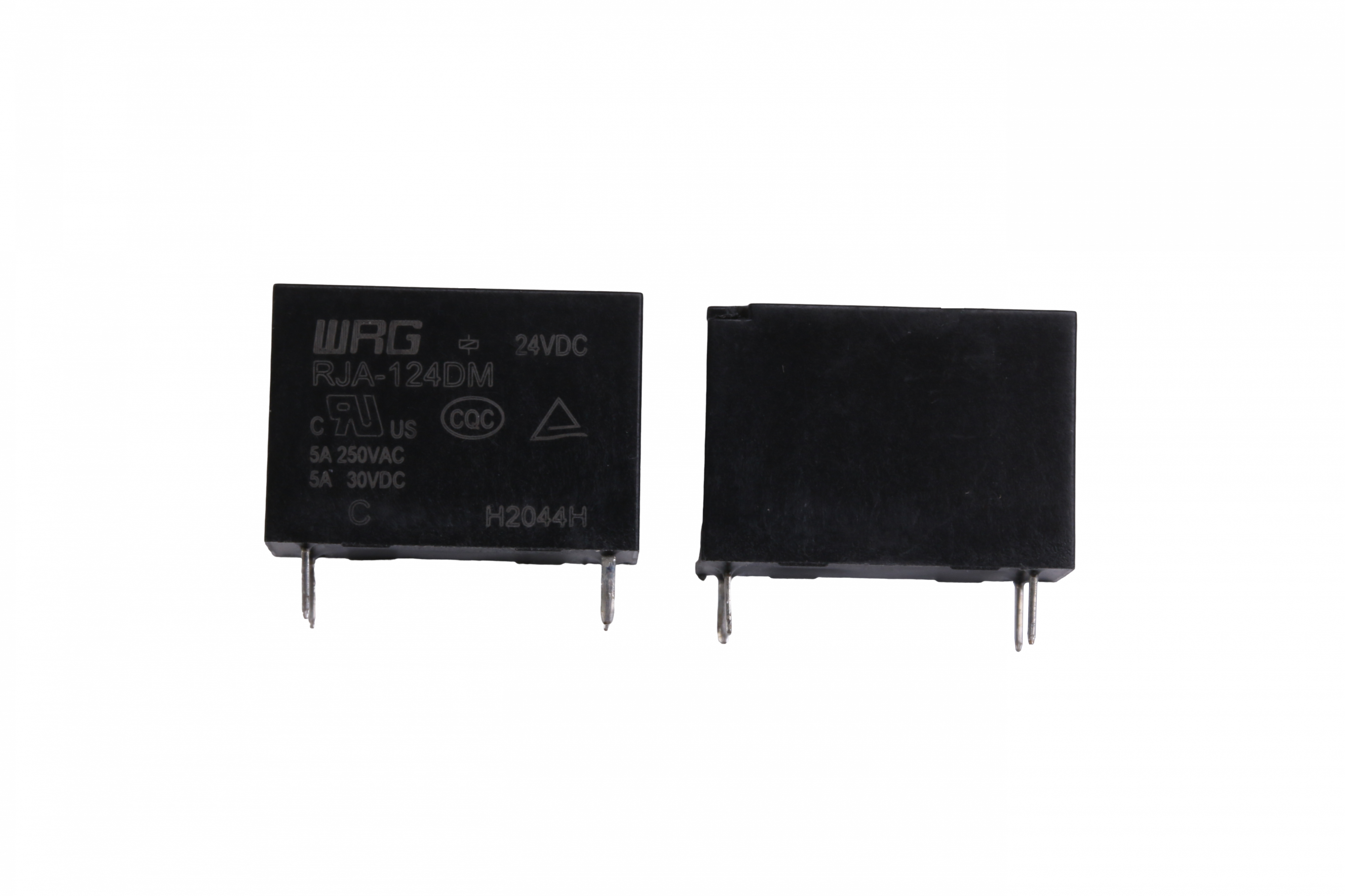

    SPST Power D 4KV Mini Power Relay 24 Volt 5A RJA - 124DM PCB Mount Relay

    24 Volt 5A SPST Power D 4KV Dielectric Withstand Non-Latching Relay RJA-124DM PCB Mount Relay for Microwave


    PCB Mount Relay Description:

    A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.


    PCB Mount Relay Features:
    1. rated current 5A
    2. lightweight, high sensitivity
    3. 1 form C, SPDT
    4. meet with IEC60079-15 anti-explosion standard
    5. IEC600335-1 is approved

    PCB Mount Relay FAQ:

    Q: How about after-sales service?
    If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.

    Q: What is the delivery time?
    If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.


    PCB Mount Relay Specification:

    Coil data:
    Coil input voltage5/9/12/24VDC
    Coil powerD type:450mW,L type:200mW
    Response voltage>75%(Room temp.)
    Drog out voltage<5%(Room temp.)
    Operating time / Release timeLess than 8ms/Less than 5ms
