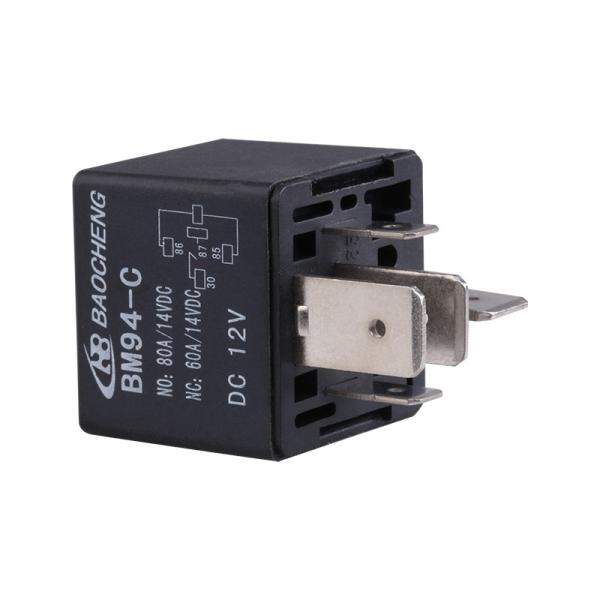

    Electric Seat Universal Automotive Relay SPDT 12V 80A Class F BM94 - C

    Ask Lasest Price
    Brand Name : NBC
    Model Number : BM94-C
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    Electric Seat Universal Automotive Relay SPDT 12V 80A Class F BM94 - C

    Electric Seat Universal Automotive Relay SPDT 12V 80A Class F BM94 - C


    Universal Automotive Relay Feature:

    1. coil power consumption 1.8W or 2.2W for options

    2. Class F for coil insulation grade

    3. environmental-friendly

    4. rated current max.80A

    5. SPST or SPDT

    6. various mounting terminals available


    Universal Automotive Relay FAQ:

    Q1: What is the delivery time like?

    A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.

    Q2: How about after-sales service?
    A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.


    Universal Automotive Relay Contact Rating:

    Contact Form:1A, 1B, 1C
    Contact Material:AgSnO2
    Contact Load Capacity:1A: 80A/14VDC
    1B: 60A/14VDC
    1C: 80A/14VDC; 60A/14VDC
    Max. Switching Current:80A
    Max. Switching Power:1120W
    Mechanical Endurance:1*107OPS
    Electrical Endurance:1*105OPS

    Universal Automotive Relay introduces:

    A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
