    Automobile 12V 40A Universal Automotive Relay PCB Mount SPDT 1 Form C

    Ask Lasest Price
    Brand Name : NBC

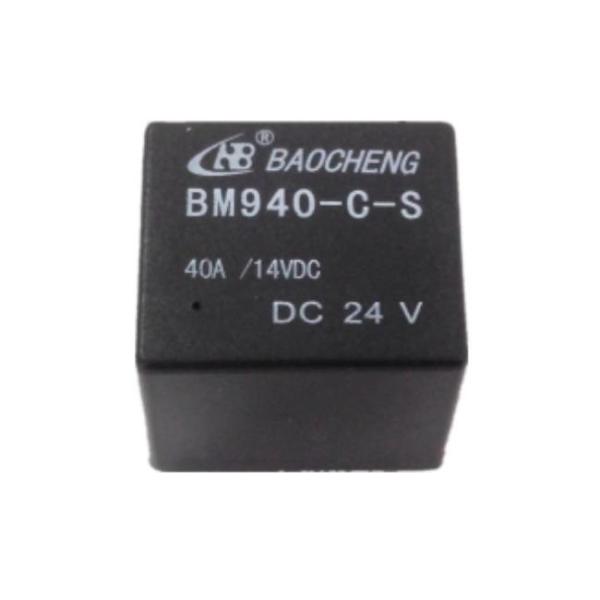

    Model Number : BM940-C-S
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    Automobile 12V 40A Universal Automotive Relay PCB Mount SPDT 1 Form C

    Automobile 12V 40A Universal Automotive Relay PCB Mount SPDT 1 Form C

    Universal Automotive Relay Feature:

    1. size 26.8*21.5*22.3mm, only 19g
    2. SPST or SPDT,11mm or 8mm pin pitch for option
    3. rated current 40A
    4. sealed,dust-proof or open type to select


    Universal Automotive Relay FAQ:
    Q: Why is WRG relay?
    WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

    Q: What is the delivery time like?
    If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.


    Universal Automotive Relay introduces:

    Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.

    Universal Automotive Relay Technical Rating:
    Insulation Resistance100MQ(500VDC)Min.
    Dielectric StrengthBetween Open Contacts500VAC 50Hz
    Between Contact and Coil4000VAC 50Hz
    Shock ResistanceOperation extremes 10G, Damage limits 100G
    Vibration ResistanceOperation extremes 10-500Hz,4.4G, Damage limits 10-500Hz, 4.4G
    Ambient Temperature-40°C ~ 85°C
    Relative Humidity85% (20°C )
    Weight6g
