Brand Name : | NBC |
Model Number : | NB90-24S-S-A |
Certification : | TUV/CQC/UL |
Price : | negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 500k per month |
Delivery Time : | 4weeks |

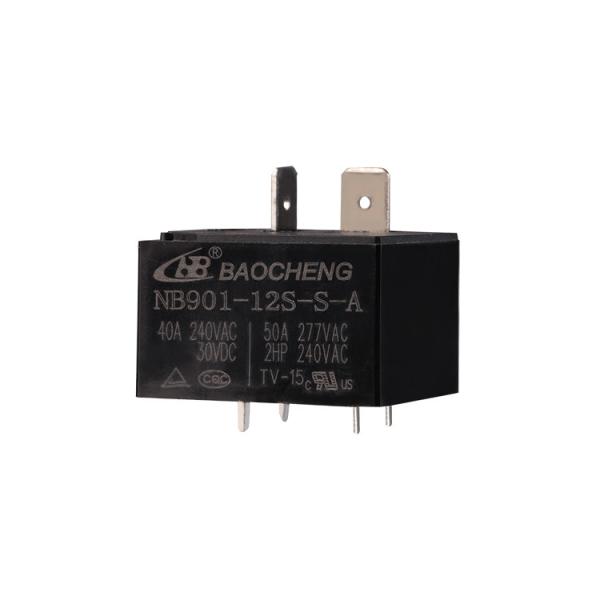

NO. 2.5KV Sealed 12V 50A Relay NB901-12S-S-A For New Energy Power Saving
12V 50A Relay Description:
New energy products, like electric vehicles, must be a trend in the
next few days. So more and more fast-charging stations are made and
satisfy the need for electric cars power-charging.NB90 series AC
relay is specially applied to the charging point. It is a high
switching capacity for contacts, is a dust-proof or sealed type
option, and is environmentally friendly.
12V 50A Relay Features:
1. 4000VAC for dielectric withstand voltage between contact and coil
2. Sealed-type
3. SPDT & SPST
4. Rated current max 50A
5. 900mW or 1.2W
6. TUV/CQC/UL certification
12V 50A Relay Introduce:
A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
12V 50A Relay Specification:
Coil data: | |||||||||
Coil input voltage | 5/9/12/24VDC | ||||||||
Coil power | D type:450mW,L type:200mW | ||||||||
Response voltage | >75%(Room temp.) | ||||||||
Drog out voltage | <5%(Room temp.) | ||||||||
Operating time / Release time | Less than 8ms/Less than 5ms |
![]() |
