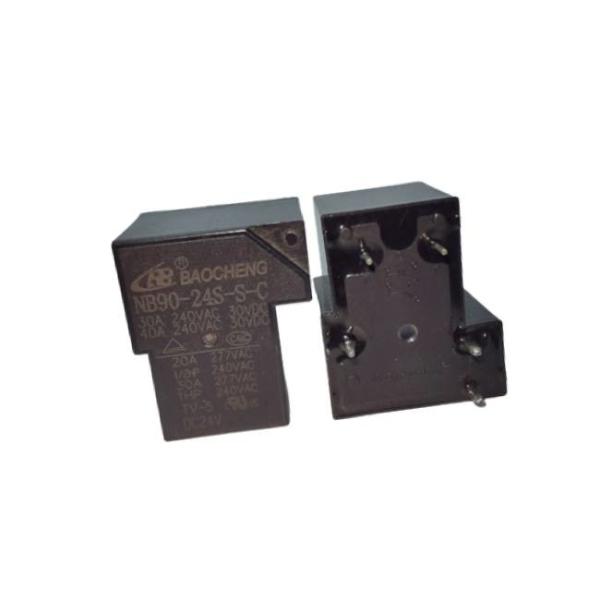

    2.5KV Sealed 12 Volt Normally Closed Relay PCB Mount 12V 40A Power Relay 5 Pin

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NB90-24S-S-C
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 4weeks
    • Product Details
    • Company Profile

    2.5KV Sealed 12 Volt Normally Closed Relay PCB Mount 12V 40A Power Relay 5 Pin

    2.5KV Sealed 12 Volt Normally Closed Relay PCB Mount 12V 40A Power Relay 5 Pin


    40A Power Relay Description:

    New energy products, like electric vehicles, must be a trend in the next few days. So more and more fast-charging stations are made and satisfy the need for electric cars power-charging.NB90 series AC relay is specially applied to the charging point. It is a high switching capacity for contacts, 2.5KV or 4KV dielectric withstand to select,0.6W or 0.9W of coil power,dust-proof or sealed type for options, and is environmental-friendly, can use indifferent.


    40A Power Relay Features:

    1. 2500VAC is available for dielectric to withstand voltage between contact and coil

    2. Class F for coil insulation grade

    3. Sealed-type

    4. TUV/CQC/UL certification


    40A Power Relay Specification:

    Technical Ratings
    Insulation Resistance:100MΩ
    Dielectric Strength(Between coil&contact):1500VAC
    Operate Time (Max.):15ms
    Release Time (Max.):5ms
    Ambient Temperature:-40℃ ~ 85℃/105℃
    Terminal Type:THT
