Brand Name : | NBC |
Model Number : | NB90-12S-S-A |
Certification : | TUV/CQC/UL |
Price : | negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 500k per month |
Delivery Time : | 4weeks |

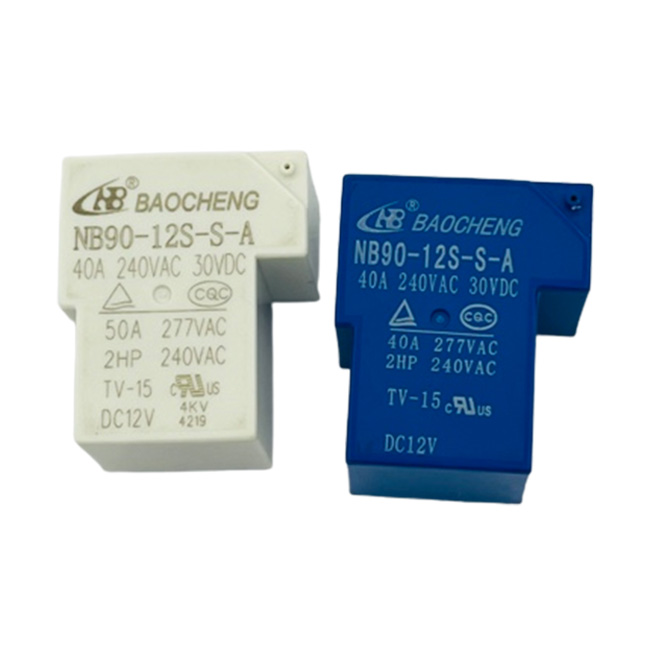

PCB Mount 12V 50A Relay SPST SPDT NO. 2.5KV Sealed NB90-12S-S-A 1
Form A Relay
12V 50A Relay Description:
New energy products, like electric vehicles, must be a trend in the
next few days. So more and more fast-charging stations are made and
satisfy the need for electric cars power-charging.NB90 series AC
relay is specially applied to the charging point. It is a high
switching capacity for contacts, is a dust-proof or sealed type
option, and is environmentally friendly.
12V 50A Relay Features:
1. 4000VAC or 2500VAC is available for dielectric to withstand
voltage between contact and coil
2. Class F for coil insulation grade
3. Rated current max 50A
4. 900mW or 1200mW
5. TUV/CQC/UL certification
12V 50A Relay Note:
1. Using under a clean environment(excluding H2S, SO2, NO2, and dust contaminants), a dust-proof type is recommended;
2. When assembly on PCB, it needs to be completely washed, please inform us before ordering, so as to provide the proper types;
3. If the dielectric strength between the coil & contacts has to be over 2500VAC, please inform us before ordering, so as to provide the proper types.
12V 50A Relay Specification:
Contact data: | |||||||||
Contact Configuration | 1 Form A | ||||||||
Contact material | Ag alloy | ||||||||
Max. switching voltage | 30VDC,277VAC | ||||||||
Max. switching power | 2,770VA | ||||||||
Contact ratings | 5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC | ||||||||
Contact resistance | Max. 100mΩ(1A/6VDC) | ||||||||
Mechanical endurance | 1x107 times | ||||||||
Electrical endurance AC1 | 1x105 times |
![]() |
