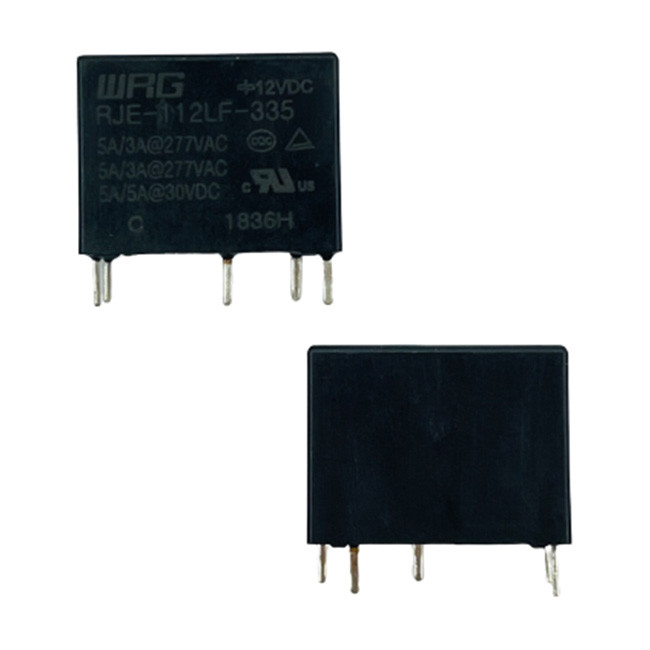

    Class F Insulation PCB Mount Mini Relay 12V 5A 60335-1 Standard For Humidifier

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RJE-112LF-335
    Certification : TUV/CQC/UL/VDE
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Class F Insulation PCB Mount Mini Relay 12V 5A 60335-1 Standard For Humidifier

    Class F Insulation PCB Mount Mini Relay 12V 5A 60335-1 Standard For Humidifier


    PCB Mount Relay Description:

    RJE series power relays are the ones with small in size and lightweight, with small currents of 3A to 5A, not only 4KV dielectric withstand voltage, but also meet with IEC60079-15 anti-explosion standard, safety system CQC/TUV/UL/VDE was approved as well, particularly useful in home appliances.


    PCB Mount Relay Features:

    1. rated current 5A
    2. lightweight, high sensitivity
    3. 1 form C, SPDT
    4. meet with IEC60079-15 anti-explosion standard
    5. IEC600335-1 is approved


    PCB Mount Relay FAQ:

    Q: Why is WRG relay?
    WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

    Q: What is the delivery time?
    If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.


    PCB Mount Relay Specification:

    Coil data:
    Coil input voltage5/9/12/24VDC
    Coil powerD type:450mW,L type:200mW
    Response voltage>75%(Room temp.)
    Drog out voltage<5%(Room temp.)
    Operating time / Release timeLess than 8ms/Less than 5ms

    Class F Insulation PCB Mount Mini Relay 12V 5A 60335-1 Standard For Humidifier
