DC 5V 5A 4 Pin SPST Relay PCB Mount Relay Ultra Thin Power D For Electric Kettle

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap DC 5V 5A 4 Pin SPST Relay PCB Mount Relay Ultra Thin Power D For Electric Kettle from wholesalers

    Buy cheap DC 5V 5A 4 Pin SPST Relay PCB Mount Relay Ultra Thin Power D For Electric Kettle from wholesalers
    • Buy cheap DC 5V 5A 4 Pin SPST Relay PCB Mount Relay Ultra Thin Power D For Electric Kettle from wholesalers

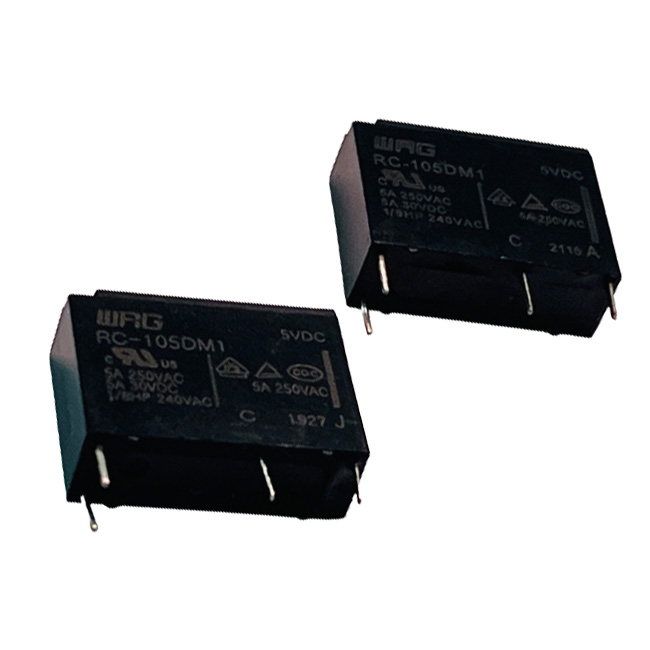

    DC 5V 5A 4 Pin SPST Relay PCB Mount Relay Ultra Thin Power D For Electric Kettle

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RC-105DM1
    Certification : TUV/CQC/UL/VDE
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    DC 5V 5A 4 Pin SPST Relay PCB Mount Relay Ultra Thin Power D For Electric Kettle

    DC 5V 5A 4 Pin SPST Relay PCB Mount Relay Ultra Thin Power D For Electric Kettle


    PCB Mount Relay Description:

    Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.


    PCB Mount Relay Features:

    1. reliable, safe, sensitive
    2. miniature size, lightweight
    3. 0.45W for coil power
    4. flux-resistance
    5. anti-explosion type for option


    PCB Mount Relay Specification:

    General data:
    Rated withstand impulse voltagecoil contact4kV AC/1min
    between contact1kV AC/1min
    Surge voltage6kV AC
    Insulation resistance1000MΩ(500VDC)
    VibrationFault 10-55Hz(amplitude 1.5mm)
    Endurance 10-55Hz(amplitude 1.5mm)
    ShockFault 98m/S2 ,Endurance 980 m/s2
    Operating temperature-40 ~ 105℃(no condensation)
    Operating humidity20 ~ 85%
    Dimension LxWxH(mm)18.2x10.2x15.5
    Enclosure typeFlux-resistance, sealed
    MountingPCB
    Weight(g)6
    CertificationscULus:E345228/TUV:R50222701/CQC:CQC10002052739
