Dishwasher SPDT PCB Relay Power D 4KV Non - Latching RJA - 124D PCB Mount Relay

Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now
    Buy cheap Dishwasher SPDT PCB Relay Power D 4KV Non - Latching RJA - 124D PCB Mount Relay from wholesalers

    Buy cheap Dishwasher SPDT PCB Relay Power D 4KV Non - Latching RJA - 124D PCB Mount Relay from wholesalers
    • Buy cheap Dishwasher SPDT PCB Relay Power D 4KV Non - Latching RJA - 124D PCB Mount Relay from wholesalers

    Dishwasher SPDT PCB Relay Power D 4KV Non - Latching RJA - 124D PCB Mount Relay

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RJA-124D
    Certification : TUV/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

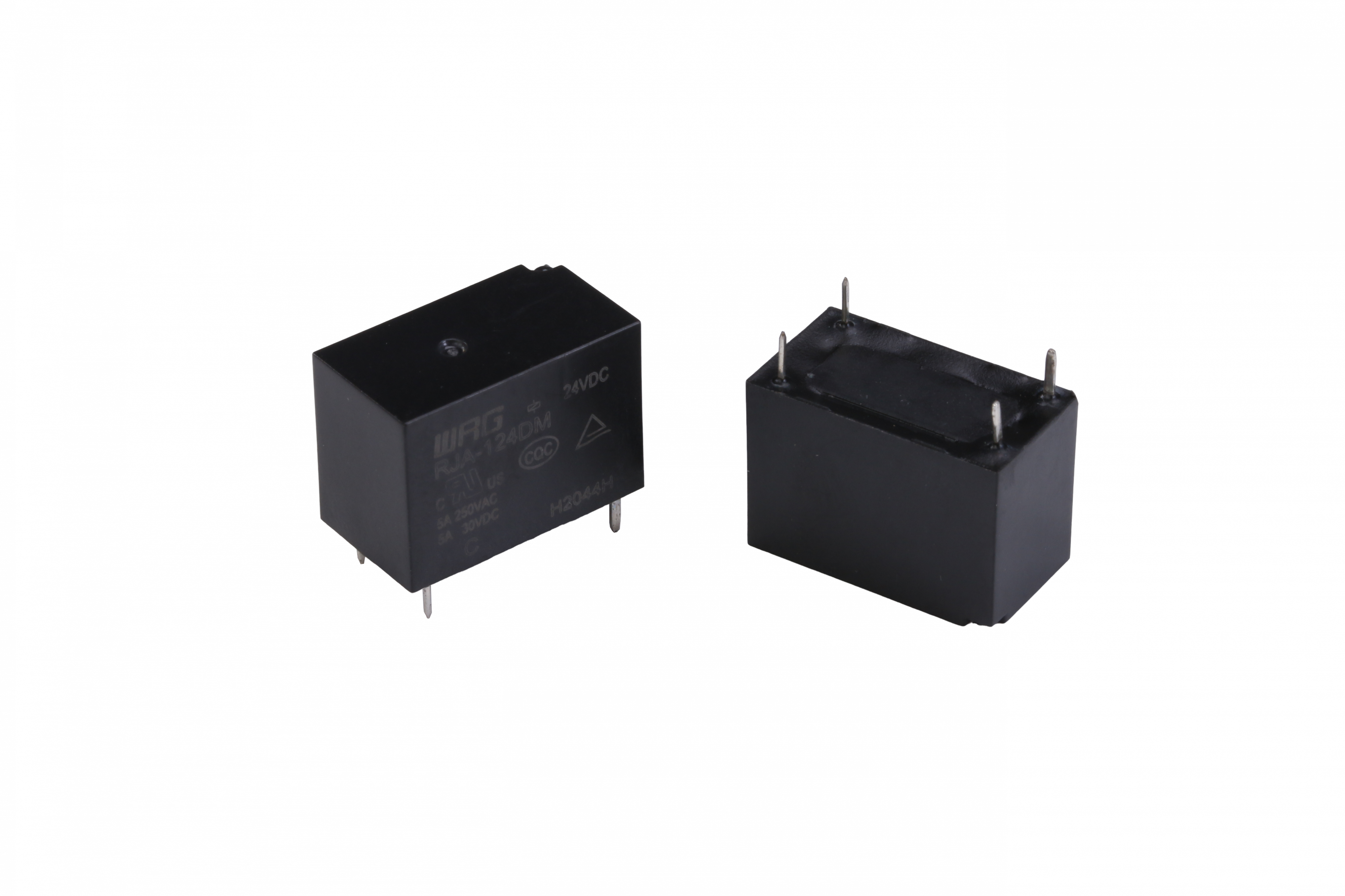

    Dishwasher SPDT PCB Relay Power D 4KV Non - Latching RJA - 124D PCB Mount Relay

    Dishwasher SPDT PCB Relay Power D 4KV Non-Latching RJA - 124D PCB Mount Relay


    PCB Mount Relay Description:

    RJE series power relays are ones which with small in size and lightweight, with small currents 3A to 5A, not only 4KV dielectric withstand voltage, but also meet with IEC60079-15 anti-explosion standard, safety system CQC/TUV/UL/VDE was approved as well, particularly use in home appliances.


    PCB Mount Relay Features:

    1. reliable, safe, sensitive
    2. miniature size, lightweight
    3. 0.45W for coil power
    4. flux-resistance
    5. anti-explosion type for option


    PCB Mount Relay Specification:

    Contact data:
    Contact Configuration1 Form A
    Contact materialAg alloy
    Max. switching voltage30VDC,277VAC
    Max. switching power2,770VA
    Contact ratings5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC
    Contact resistanceMax. 100mΩ(1A/6VDC)
    Mechanical endurance1x107 times
    Electrical endurance AC11x105 times


    PCB Mount Relay Introduce:

    Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.

    Quality Dishwasher SPDT PCB Relay Power D 4KV Non - Latching RJA - 124D PCB Mount Relay for sale
