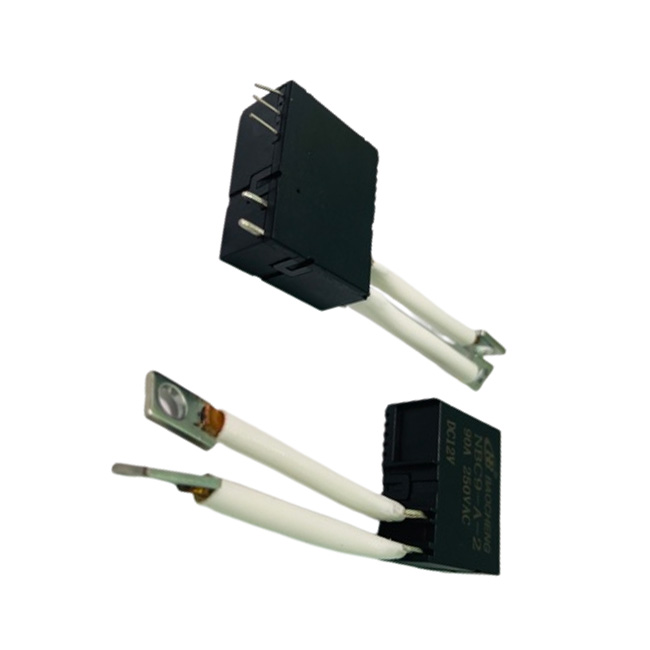

    90A 24V 2 Coil Magnetic Latching Relay NBC9-A-90-DC24V-2 For Electricity Meter

    Ask Lasest Price
    Brand Name : NBC
    Model Number : NBC9-A-90-DC24V-1
    Certification : CQC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    90A 24V 2 Coil Magnetic Latching Relay NBC9-A-90-DC24V-2 For Electricity Meter

    90A 24V 2 Coil Magnetic Latching Relay NBC9-A-90-DC24V-2 For Electricity Meter


    Magnetic Latching Relay Features:

    1. Environmental, power saving

    2. 1.5W or 3W coil power for option

    3. NO or NC can be switched by hand


    Name rule for this product:

    NBC9 - A - 90 - DC12V - 1

    1 2 3 4 5

    1: Relay Model

    2: Contact Form: A: Normally Open B: Normally Close

    3: Contact Max Switching Ability: 90:90 Amp 60: 60 Amp

    4: Rated Coil Voltage: 12: 12V 48:48V

    5: Coil Group Quantity: 1: Single 2: Double


    Magnetic Latching Relay introduces:

    Relay is an automatic switching element with an isolation function. It is widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment. It is one of the most important control elements.


    Magnetic Latching Relay Specification:

    Contact Rating

    Contact Form

    1A/1B

    Contact Resistance Max

    20mΩ

    Contact Material

    AgSnO2, AgNi

    Contact Load Capacity(Resistance)

    90A 250VAC ,60A/250VAC

    Switching Power Max.

    22500VA

    Switching Voltage Max.

    250VAC

    Switching Current Max.

    90A

    Life expectancy

    Electrical

    1x10^4 (electric meter) 1x10^5 (60A 250VAC)


    Mechanical

    1x10^5 (electric meter) 1x10^6
