    15A DC12V High Surge PCB Mounted SPDT Power Relay T73-12VDC-SL-C For Home Appliances


    NBC

    Miniature 15A DC12V High Surge PCB SPDT Power Relay T73-12VDC-SL-C for Home Appliances


    Description:

    T73 Series PCB power relay,it is a muniature,but with 15A high load current,high surge,specially use for home appliances,automatic system...


    Feature:

    1. miniature size,20.3*16.5*15.5mm

    2. low coil power consumption

    3. 15A high switching capability

    4. sealed or dust-proof for option

    5. 1A/1B/1C for option


    Application:

    1. house appliances

    2. automatic system

    3. CCTV and communication


    Specification:


    Contact Rating
    Contact Form1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M))
    Contact MaterialAgCdO AgSnO2
    Dielectric StrengthBetween Coil&Contact1500VAC/1min
    Between Contacts750 VAC/1min
    Contact Load Capacity

    7A 250VAC, 10A 125VAC, 250VAC, 15A 125VAC, 250VAC

    Lamp Load: TV-5

    Switching Power Max.360W 3750VA
    Switching Current Max15A
    Switching Voltage Max.110VDC 380VAC
    Contact Resistance Max.≤100mΩIEC 61810-7 4.12
    Life expectancyElectrical10 5IEC 61810-7 4.30
    Machanical10 7IEC 61810-7 4.31

    Note: Life test condition: normal temperature, pure resistant load, 1 S on, 9 S off.


    Coil Rating
    No.Coil Voltage(VDC)Coil ResistanceΩ±10%Pick up (VDC) Max. (75% of Rated Voltage)Drop out (VDC) Min.(10% of Rated Voltage)Power (W)Operate Time (ms)Release Time (ms)
    RatedMax.
    005-36033.9252.250.300.36≤15≤5
    006-36056.5703.750.50
    009-36067.81004.500.60
    012-360911.72256.750.90
    018-3601215.64009.001.20
    024-3602431.2160018.002.40
    048-3604862.4640036.004.80

    Note:1.Realys will be damaged if coil voltage lower than rated voltage.

    2.The voltage of pick up and drop out is only for inspection, not for application.


    Technical Rating
    Insulation ResistanceMin.100MΩ(500VDC)IEC 60255-5
    Shock Resistance10G 11msIEC 68-2-27 test Ea
    Vibration Resistance10Hz~55Hz double amplitude 1.5mmIEC 68-2-6 test Fc
    Leading-out Terminal Strength5NIEC 68-2-21 test Ua1
    Weldability235℃±3℃ 3s±0.5sIEC 68-2-20 test Ta Way1
    Ambient Temperature﹣40℃~85℃
    Relative Humidity85%(40℃)IEC 68-2-3 test Ca
    WeightAbout 9.0g

    Safety Certification
    ApprovalCQCULTUV
    LoadIn ApplicationIn ApplicationIn Application

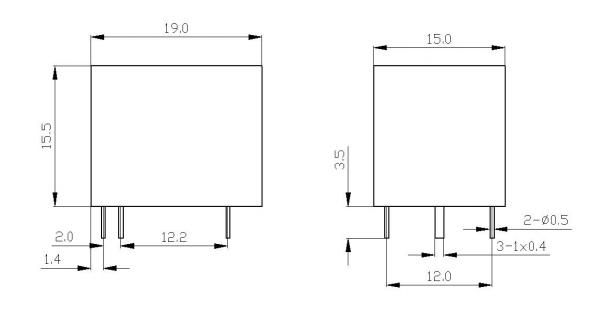

    3 Measurement and circuit of Miniature power relay 15 ampere

    12
    Outline DimensionsBottom View Layout
    3
    Wiring Diagram(Bottom View)
    4
