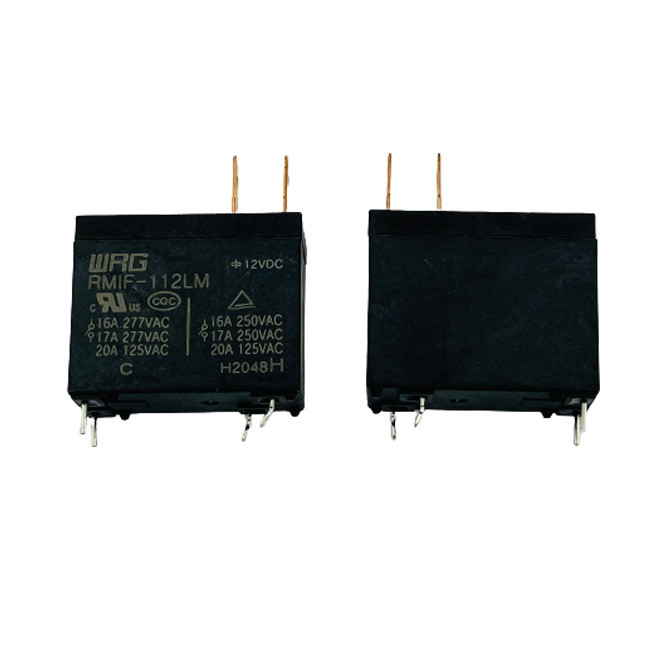

    Small Intermediate Relay 20A Power Relay RMIF-112LM 5KV Dielectric Withstand WRG Relay

    Ask Lasest Price
    Brand Name : WRG
    Model Number : RMIF-112LM
    Certification : TUL/CQC/UL
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Small Intermediate Relay 20A Power Relay RMIF-112LM 5KV Dielectric Withstand WRG Relay

    Small Intermediate Relay 20A Power Relay RMIF-112LM 5KV Dielectric Withstand WRG Relay


    20A Power Relay Description:

    RMIF series power relay, rated current from 16A to 20A,5KV dielectric withstand between coil and contact, multiple mounting, like standard type with PCB mount and quick terminal 187, instead of, removing M and C QT, removing terminal M and C PCB pin, removing terminal C PCB pin, removing terminal M PCB pin, removing terminal M and C PCB pin, and adding dummy terminal. It has enough insulation distance for the control switch, safety standard 60335-1 available, especially use for home appliances.


    20A Power Relay Specification:

    General data

    Rated withstand impulse voltage

    coil contact

    5kV AC/1min

    between contact

    1kV AC/1min

    Surge voltage

    10kV AC(1.2/50μs)

    Insulation resistance

    1000MΩ(500VDC)

    Vibration

    Fault 10-55Hz(amplitude 1.5mm)

    Endurance 10-55Hz(amplitude 1.5mm)

    Shock

    Fault 98m/S2 ,Endurance 980 m/s2

    Operating temperature

    -40 ~ 105℃(no condensation)

    Operating humidity

    20 ~ 85%

    Dimension LxWxH(mm)

    29.0x12.6x24.4

    Enclosure type

    Flux-resistance

    Mounting

    PCB

    Weight(g)

    15

    Certifications

    cULus:E345228/TUV:R50227054


    20A Power Relay Introduce:

    The relay is an electric control device, which is an electrical appliance that causes the controlled quantity to undergo a predetermined step change in the electrical output circuit when the change of the input quantity (excitation quantity) meets the specified requirements. It has an interactive relationship between the control system (also known as the input loop) and the controlled system (also known as the output loop). Usually used in automatic control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.


    20A Power Relay FAQ:

    Q1: Why is WRG relay?

    A1: WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

    Q2: What is the delivery time like?

    A2: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7 days to the destination in China.
